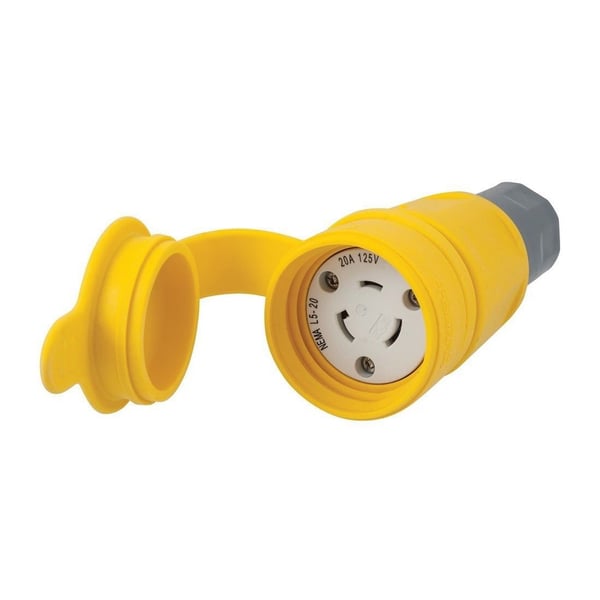

Wiring Device-Kellems Twist-Lock® Elastogrip® HBL27W47 Isolated Grounding Standard Sized Water/Dust-Tight Female Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Wiring Device-Kellems Twist-Lock® Elastogrip® HBL27W47 Isolated Grounding Standard Sized Water/Dust-Tight Female Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
SKU: HWDHBL27W47
Manufacturer Part Number: HBL27W47
UPC: 783585131467
Documents
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion resistant connection points
Specification
| Material | Thermoplastic Elastomer |
|---|---|
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | HWDHBL27W47 |
| Color | Yellow |
| Dimensions | 2.51 x 2.51 x 5.69 in |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Voltage Rating | 125 VAC |
| NEMA Rating | L5-20R/WD1/WD6 |
| Grade | Commercial/Industrial |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL 498, CSA C22.2 No. 42, ANSI Approved |
| Type | Isolated Grounding Standard Sized Water/Dust-Tight |
| Enclosure | IP65/IP66/IP67/NEMA 4/4X/12/6/6P |
| Cord Diameter | 3/8 to 7/8 in |
