3M™ QSLV-M Low Voltage Cold Shrink Quick Insulator, 0.4 in Min Dia, 1.6 in Max Diameter, 4-1/4 in L, 1400 psi Tensile

Selected 3M™ QSLV-M Low Voltage Cold Shrink Quick Insulator, 0.4 in Min Dia, 1.6 in Max Diameter, 4-1/4 in L, 1400 psi Tensile
3M™ QSLV-M Low Voltage Cold Shrink Quick Insulator, 0.4 in Min Dia, 1.6 in Max Diameter, 4-1/4 in L, 1400 psi Tensile

Documents

Short Description

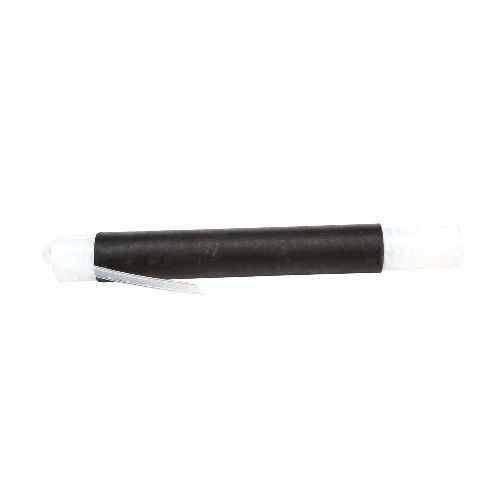

3M™ Cold Shrink Quick Splice low voltage QSLV-M are open-ended tubular rubber sleeves with sealing mastic on each end which are factory expanded and assembled onto a unique three-core system. Two cores, one on each end, are removed after the QSLV-M insulator has been centered over an inline connector, allowing the ends of the tube to shrink and form a water resistant seal. The third, center segment of the core remains inside the cold shrink tube, acting as a support structure. Sizing of the cores and tube, along with the sealing mastic on each end, is designed to accommodate the variance in connectors and connector crimping techniques and final dimensions without degrading the seal and insulating characteristics of the EPDM rubber tube, while making core removal easy. Two diameter sizes will cover a range of 1000 volt or less cable from 8 AWG through 500 kcmil, copper and aluminum conductors with crimped connectors.

Features

  • Low voltage single conductor insulated cable
  • 1 kV voltage rating
  • Simple hand installation, no tools required
  • No heat source
  • Accommodates wide range of cable sizes, including street lighting
  • Excellent wet electrical properties
  • Good thermal stability during storage and shipping
  • Seals tight, retains resiliency and pressure, even after years of aging and exposure
  • Resists acids and alkalis
  • Water resistant
  • 2 AWG - 1000 kcmil (Cu), 2 AWG - 500 kcmil (Al) conductor size
  • 0.4 - 1.6 in cable insulation outer Dia

Specification

Length
4-1/4 in
Material
EPDM Rubber
Minimum Order Qty
1
Order Interval
1
Color
Black
Minimum Diameter
0.4 in
Maximum Diameter
1.6 in
Tensile Strength
1400 psi
Application
For sheath repairs, dig-in repairs, insulation of secondary splices, copper or aluminum conductors
Elongation
7.5
Dielectric Strength
365 V/mil
Catalog ID
3-MQSLV-M8-20
Standard & Approvals
ANSI C119.1, RoHS Compliant
