3M™ Scotchlok™ 051128-58766 Insulated Block Fork Terminal, 12 to 10 AWG Conductor, 1.03 in L, Brazed Seam Barrel, Copper

Selected Data-Spec Sheet3M™ Scotchlok™ 051128-58766 Insulated Block Fork Terminal, 12 to 10 AWG Conductor, 1.03 in L, Brazed Seam Barrel, Copper
Data-Spec Sheet3M™ Scotchlok™ 051128-58766 Insulated Block Fork Terminal, 12 to 10 AWG Conductor, 1.03 in L, Brazed Seam Barrel, Copper

Documents

Short Description

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance.

Features

  • Brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Electrolytic copper construction offers good conductivity
  • Abrasion and corrosion resistant, flared, vinyl-sleeve insulation ensures easy crimping
  • Crimp termination
  • Free hanging (In-line) mounting
  • 500/Case, 50/Bottle

Specification

Barrel Type
Brazed Seam
Temperature Rating
-40 to 221 deg F
Conductor Type
Stranded Copper
Color
Yellow
Voltage Rating
600/1000 VAC
Conductor Size
12 to 10 AWG
Material
Copper
Finish
Electro-Tin Plated

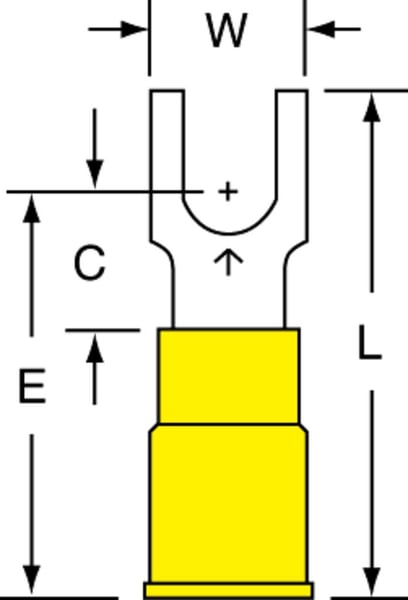

Specifications
1/4 in Dia Maximum Insulation, 0.29 in Clearance
Stud Size
NO 10
Tongue Size
0.32 in W x 0.04 in T
Standard & Approvals
LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed
Application
For Building Wire, Fixtures or Luminaires and Signs
Tongue Type
Fork
Length
1.03 in
Barrel Size
0.135 in ID x 1/4 in L
