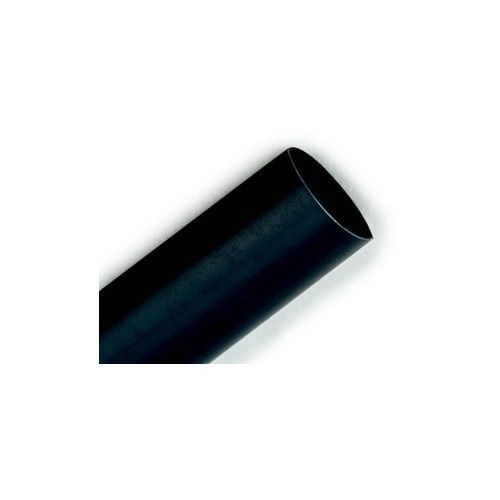

3M™ FP301 Heat Shrink Tubing, 1-1/2 in ID Expanded, 3/4 in ID Recovered, 0.04 in Wall THK Recovered, 48 in L

Selected 051128-596103M™ FP301 Heat Shrink Tubing, 1-1/2 in ID Expanded, 3/4 in ID Recovered, 0.04 in Wall THK Recovered, 48 in L
051128-596103M™ FP301 Heat Shrink Tubing, 1-1/2 in ID Expanded, 3/4 in ID Recovered, 0.04 in Wall THK Recovered, 48 in L

Documents

Short Description

3M™ Heat Shrink Tubing 3M FP-301 offers an excellent balance of electrical, physical and chemical properties for a wide variety of industrial and military applications. Rated for 135 deg C continuous operation, all 3M FP-301 tubing is split resistant, mechanically tough, easily marked and resists cold flow.

Features

  • Typically used as a shrink-fit electrical insulation over cable splices and terminations
  • FP-301 tubing is rated for continuous operation at -55 to 135 deg C, and is designed to withstand elevated temperatures to 300 deg C for short periods
  • Balances electrical, physical and chemical properties for various industrial and military applications
  • Offers shrink-fit protection and strain relief of wires, solder joints, terminals and connections
  • It has a flexible polyolefin construction that offers moisture-seal protection
  • General-purpose, thin-wall tubing that provides a balance of electrical, physical and chemical properties, making it perfect for industrial and military application
  • This tubing has a 2:1 shrink ratio and provides flame-retardant insulation for 600V-rated applications

Specification

Inner Diameter Expanded
1-1/2 in
Inner Diameter Recovered
3/4 in
Length
48 in
Material
Polyolefin
Voltage Rating
600 VAC
Color
Black
Temperature Rating
-67 to 275 deg F
Standard & Approvals
AMS-3636, AMS-3637, CSA LR38227, SAE-AMS-DTL-23053/5, UL E-39100
Shrink Temperature
212 Deg F
Shrink Ratio
12/31/1899 2:01:00 AM
Application
For lightweight wire harness covering, wire marking, wire bundling, component packaging and fire-resistant covering
