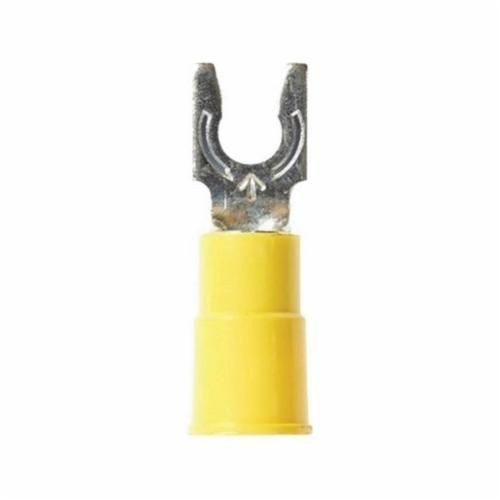

3M™ Highland™ 051128-60016 Insulated Locking Fork Terminal, 12 to 10 AWG Conductor, 1.03 in L, Butted Seam Barrel
3M™ Highland™ 051128-60016 Insulated Locking Fork Terminal, 12 to 10 AWG Conductor, 1.03 in L, Butted Seam Barrel
SKU: 3-MLFV10-8Q
Manufacturer Part Number: 051128-60016
UPC: 051128600160
Documents
Short Description
Features
- Butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Spring-like tongue firmly fits around the stud
- Electrolytic copper construction offers good conductivity
- Abrasion and corrosion resistant, flared, vinyl-sleeve insulation ensures easy crimping
- Crimp termination
- Free hanging (In-line) mounting
- 0.35 in maximum lock width
- 25/Bag
Specification
| Length | 1.03 in |
|---|---|
| Material | Copper |
| Conductor Size | 12 to 10 AWG |
| Voltage Rating | 600 V/1000 V |
| Application | For Building Wire, Fixtures or Luminaires and Signs |
| Barrel Size | 0.135 in ID x 1/4 in L |
| Barrel Type | Butted Seam |
| Color | Yellow |
| Conductor Type | Stranded Copper |
| Finish | Electro-Tin Plated |
| Specifications | 1/4 in Dia Maximum Insulation, 0.28 in Clearance |
| Standard & Approvals | LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed |
| Stud Size | NO 8 |
| Temperature Rating | -40 to 221 deg F |
| Tongue Size | 0.32 in W x 0.04 in T |
| Tongue Type | Fork |
