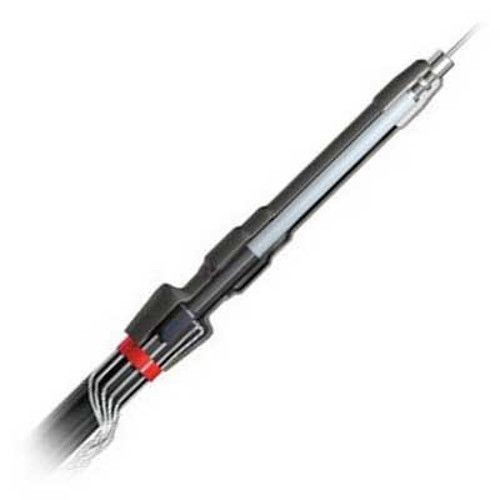

3M™ 7620-T Cold Shrink QT-III Termination Kit, 3, 0.83 - 1.53 in OD Cable Insulation, Silicone Rubber, Black

Selected 3M™ 7620-T Cold Shrink QT-III Termination Kit, 3, 0.83 - 1.53 in OD Cable Insulation, Silicone Rubber, Black
3M™ 7620-T Cold Shrink QT-III Termination Kit, 3, 0.83 - 1.53 in OD Cable Insulation, Silicone Rubber, Black

Documents

Short Description

3M™ Cold Shrink QT-III 7620-T & 7690-T Series Termination Kit includes 3 non-skirted, 1-piece, 3-phase terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 - 35 kV

Features

  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Non-tracking, molded, silicone rubber insulation offers durability
  • Includes 3 non-skirted, 1 piece, 3 phase, cold shrink terminations
  • UniShield®, wire shield, tape shield shielding type
  • Conductor size by voltage (5 kV) 500 - 750 kcmil, (8 kV) 350 - 700 kcmil, (15 kV) 4/0 AWG - 500 kcmil
  • 3 terminals

Specification

Material
Silicone Rubber
Number of Pieces
3
Application
For Indoor and Weather-Protected
Color
Black
Standard & Approvals
IEEE 48 Class 1 Approved
Suitable For Use With
Conductor Size Range (5 kV) 500 - 750 kcmil, (8 kV) 350 - 700 kcmil, (15 kV) 4/0 AWG - 500 kcmil
Specifications
110 kV BIL-Rated, 0.83 - 1.53 in OD Cable Insulation, 12 in Maximum Installed Length
