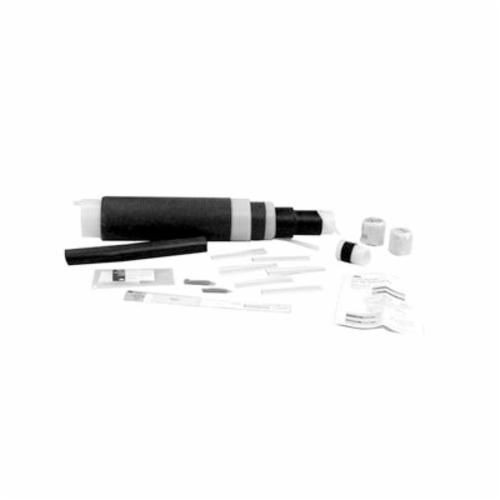

3M™ 5515A Cold Shrink QS-III Splice Kit, 15 kV, 350 - 750 kcmil Conductor, 32 in L Splice, Silicon Rubber
3M™ 5515A Cold Shrink QS-III Splice Kit, 15 kV, 350 - 750 kcmil Conductor, 32 in L Splice, Silicon Rubber
SKU: 3-M5515A
Manufacturer Part Number: 054007-42134
UPC: 054007421344
Documents
Short Description
Features
- In-line splice for joining tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables
- Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
- Designed for feeder and distribution circuits, it transitions from shielded to neutral power cables and fits type MV-90 cables
- Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
- Factory tested partial discharge and AC ensure reliability
- Polyolefin foam, copper conductor
- 0.8 in - 1.84 in connector OD
- 6.75 in aluminum/copper compression length, 7.5 in copper compression length, 6.93 in shearbolt connector length
- 1090 PSI tensile strength
- 610% elongation
- 370 V/mil dielectric strength
- 750 kcmil, 500 kcmil, 350 kcmil conductor sizes
- 1/Case
Specification
| Material | Silicon Rubber |
|---|---|
| Number of Conductors | 1 |
| Voltage Rating | 15 kV |
| Cable Type | Longitudinally Corrugated (LC)/Tape Shield/UniShield®/Wire Shield |
| Color | Black |
| Standard & Approvals | IEEE 404 Requirements |
| Temperature Rating | 105 to 140 deg C |
| Splice Length | 32 in |
| Connector Type | In-Line |
| Application | For Direct Burial Installations, Feeder and Distribution Circuits, Inline Splicing and Submerged Locations |
| Dimensions | 3 in Dia |
| Conductor Size | 350 - 750 kcmil |
| Insulation Size | 1.04 - 1.7 in OD |
