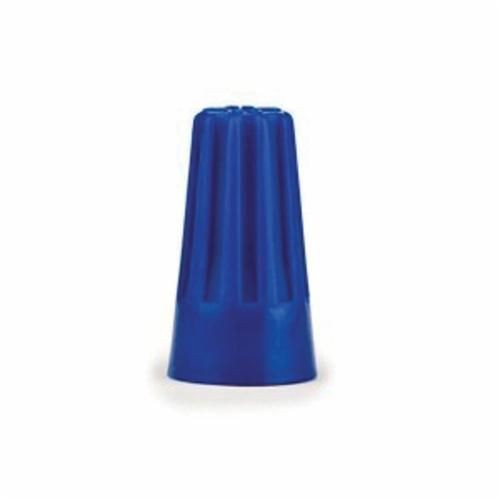

3M™ Highland™ H-30 Fully Insulated Twist-On Wire Connector, Ribbed Shell, Round Wire Spring, 22 - 16 AWG, Steel Spring

Selected H-30-BOXED3M™ Highland™ H-30 Fully Insulated Twist-On Wire Connector, Ribbed Shell, Round Wire Spring, 22 - 16 AWG, Steel Spring
H-30-BOXED3M™ Highland™ H-30 Fully Insulated Twist-On Wire Connector, Ribbed Shell, Round Wire Spring, 22 - 16 AWG, Steel Spring

Documents

Short Description

3M™ Highland™ Color-Coded Wire Connectors make it quick and easy to match the right connector to the size of the wire. The shells are designed to withstand temperatures up to 221°F (105°C). Highland color-coded wire connectors are UL Listed, CSA Certified, and work equally well with either solid or stranded copper wire.

Features

  • Work equally well with either solid or stranded copper wire
  • 1000 V for signs, fixtures or luminaires
  • (5) 22 AWG, 3 - 5 20 AWG, 2 - 4 18 AWG, (2 or 3) 16 AWG, (1) 14 AWG, (1) 16 AWG wire combinations
  • 100/Box

Specification

Material
Steel Spring
Minimum Order Qty
100
Order Interval
100
Catalog ID
3-MH-30-BOXED
Color
Blue
Voltage Rating
300 VAC
Application
For Electrically Connect Two or More Conductor Ends in a Pigtail Application and Insulate the Connection
Shell Style
Ribbed
Spring Type
Round Wire
Standard & Approvals
C22.2 #188-MI983 File No 58960 CSA Certified, 2011/65/EU RoHS Compliant, UL 486C UL File No E84147 Listed
Temperature Rating
221 deg F
