3M™ 5300 Pigtail Motor Lead Splice Kit, 0- 1000 V, 10 to 4 AWG Feeder Cable, 12 to 4 AWG Motor Lead Conductor

Selected 3M™ 5300 Pigtail Motor Lead Splice Kit, 0- 1000 V, 10 to 4 AWG Feeder Cable, 12 to 4 AWG Motor Lead Conductor
3M™ 5300 Pigtail Motor Lead Splice Kit, 0- 1000 V, 10 to 4 AWG Feeder Cable, 12 to 4 AWG Motor Lead Conductor

Short Description

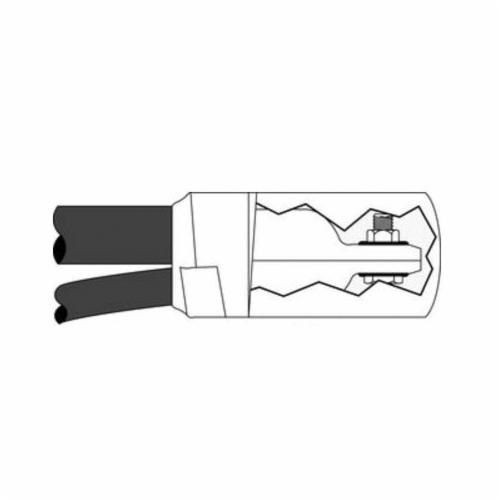

3M™ 5300 Series Motor Lead Pigtail Splice Kit is perfect to use with copper compression, 1-hole lugs. It is designed to splice motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000V or less. The kit can make 3 splices and can be used on cables that can withstand a maximum temperature of 194 degrees F (90 degrees C).

Features

  • Fast and simple installation
  • No torches or heat source required
  • No special tools required to install splice
  • Thick walls to resist puncture and abrasion damage
  • High dielectric constant stress control included with 5/8 kV kits for shielded feeder cables for minimizing size and electrical stress
  • Easy re-entry, can be used on cables with a rated operating temperature of 90 deg C and an emergency overload rating of 130 deg C, to splice (insulate and seal) motor lead connections for 1000 V and less cables sized 16 AWG to 500 Kcmil
  • Suitable for use with 30000 Series copper compression lugs or other UL Listed copper lugs
  • 365 V/MIL dielectric strength
  • 750% elongation
  • 1400 PSI tensile strength
  • 1/2 in maximum bolt length
  • Polyethylene cable

Specification

Material
EPDM Rubber
Minimum Order Qty
1
Order Interval
1
Dimensions
4 in L
Temperature Rating
90 to 130 deg C
Standard & Approvals
CSA Certified, RoHS 2011/65/EU Compliant¿
Application
For Splicing Motor Lead Cables to Incoming Feeder Cables
Voltage Rating
0 to 1000 VAC
Connector Type
Pigtail (1 Hole Lug)
Catalog ID
3-M5301
