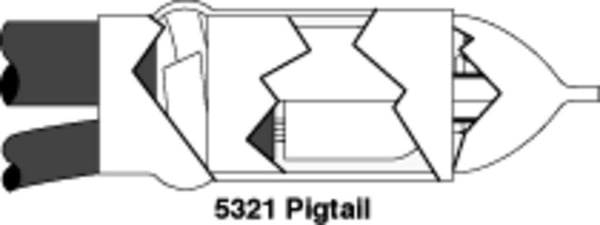

3M™ 5323 5300 Motor Lead Pigtail Splice, 5/8 kV, 2 AWG to 250 kcmil Conductor, 9 to 10 in L Splice, EPDM Rubber

Selected 53233M™ 5323 5300 Motor Lead Pigtail Splice, 5/8 kV, 2 AWG to 250 kcmil Conductor, 9 to 10 in L Splice, EPDM Rubber
53233M™ 5323 5300 Motor Lead Pigtail Splice, 5/8 kV, 2 AWG to 250 kcmil Conductor, 9 to 10 in L Splice, EPDM Rubber

Documents

Short Description

3M™ 5300 series motor lead pigtail splice kit contains 3 each of pigtail lug covers, cold shrink tubes, silicone grease tubes, solvent cleaning cloths, splicing tape 130C and more. This shielded and non-shielded splice kit features a slip on splice cover that is made of a durable EPDM rubber while mastic strips are used for moisture seal applications. It includes high dielectric constant stress control for reducing the size and electrical stress. This kit is perfect for splicing polyethylene/cross linked cable, ethylene propylene rubber cable, copper conductors and more. RoHS 2011/65/EU Compliant.

Features

  • Fast and simple installation
  • No torches or heat source required
  • No special tool required to install splice
  • THK walls to resist puncture and abrasion damage
  • High dielectric constant stress control included with 5/8 kV kits for shielded feeder cables for minimizing size and electrical stress
  • Easy re-entry, can be used on cables with a rated operating temperature of 90 deg C and an emergency overload rating of 130 deg C, to splice (insulate and seal) motor lead connection for 1000 VAC and less cables sized 16 AWG to 500 kcmil
  • Suitable for use with 30000 series copper compression lugs or other UL listed copper lug
  • 365 V mil dielectric strength
  • 750% elongation
  • 1400 psi tensile strength
  • 1-1/4 in L maximum bolt
  • Polyethylene cable

Specification

Color
Black
Standard & Approvals
CSA Certified, RoHS Compliant
Temperature Rating
90 deg C
Splice Length
9 to 10 in
Voltage Rating
5/8 kV
Cable Type
Tape Shield/Unshielded/Wire Shield
Connector Type
Pigtail
Application
Splicing Motor Lead Cables to Incoming Feeder Cable Applications
Dimensions
10 in L
Insulation Size
0.53 to 0.88 in OD
Includes
(9) Mastic Sealing Strips, (3) Pigtail Lug Covers, (3) Cold Shrink Tubes, (3) Rolls Scotch® 2200 Stress Control Tapes, (3) Bags of Solvent Cleaning Cloths, (3) Tubes of Silicone Grease, (3) Rolls Scotch® 130C Linerless Rubber Splicing Tape and (3) Instruction Sheets
Material
EPDM Rubber
Conductor Size
2 AWG to 250 kcmil
