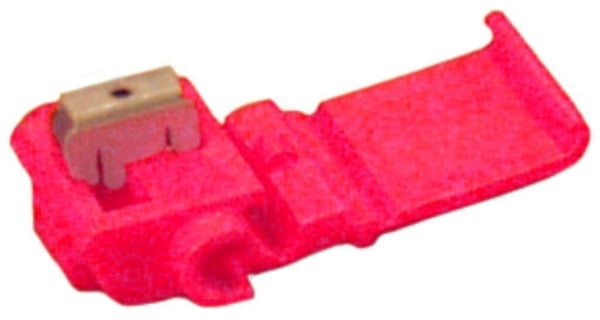

3M™ 7000148820 Flame-Retardant Moisture-Resistant Self-Stripping Electrical IDC, 22 to 16 AWG Wire

Selected 70001488203M™ 7000148820 Flame-Retardant Moisture-Resistant Self-Stripping Electrical IDC, 22 to 16 AWG Wire
70001488203M™ 7000148820 Flame-Retardant Moisture-Resistant Self-Stripping Electrical IDC, 22 to 16 AWG Wire

Documents

Short Description

Identify the right wire size with ease when you use the 3M™ Scotchlok™ 557 IDC Pigtail Electrical Connector. Its color-coding offers a quick reference point, and it can hold solid or stranded wires ranging in size from 22 to 16 AWG. Tin-plated for corrosion resistance, the brass element of this connector provides good conductivity and creates a dual-element connection. This connector is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

Features

  • The suggested application tool for this connector is the E-9BM crimping tool
  • Moisture-resistant connection
  • Insulation Displacement Connector 557 provides a dual element connection
  • The connector is polypropylene insulated and used to connect 2 wires while insulating the connection
  • It is self stripping and flame-retardant

Specification

Minimum Order Qty
1
Order Interval
1
Catalog ID
3-M557-BULK
Color
Red
Voltage Rating
600 VAC
Specifications
0.12 in Dia Max Insulation
Standard & Approvals
CSA Certified, RoHS Compliant, UL Listed
Temperature Rating
221 deg F
