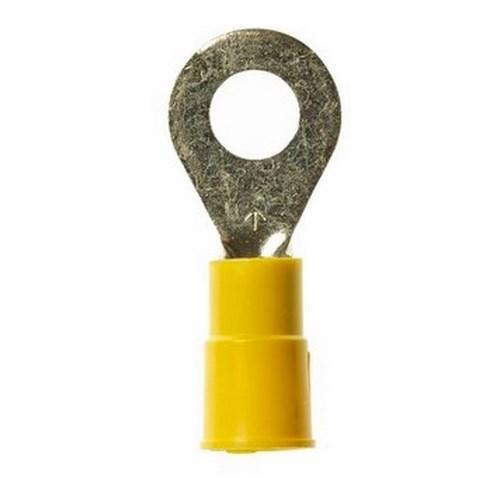

3M™ 7100007053 Standard Terminal, 12 to 10 AWG Conductor, 1.26 in L, 0.135 in ID x 0.25 in L Brazed Barrel, ETP Copper, Yellow

Selected 3M 7100007053
3M 7100007053

Documents

Short Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • It cannot be removed unless mounting screw is removed
  • Crimp connection, vinyl insulated
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000v for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)

Specification

Material
ETP Copper
Voltage Rating
600 to 1000 VAC
Length
1.26 in
Conductor Size
12 to 10 AWG
Color
Yellow
Temperature Rating
-40 to 221 deg F
Type
Standard
Barrel Type
0.135 in ID x 0.25 in L Brazed
Dimensions
0.53 in W x 0.04 in THK
Stud Size
1/4 in
