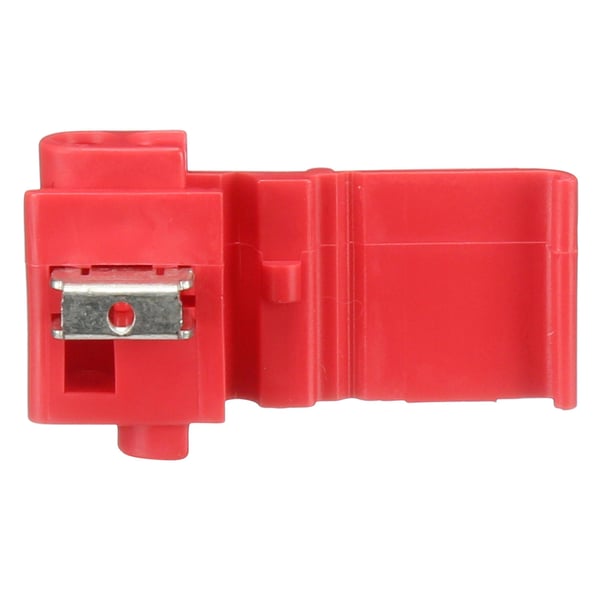

3M™ 7100166926 Flame-Retardant Run/Tap Displacement Connector, 22 to 16 AWG (Tap) Wire Solid/Stranded/Tinned/Untinned Copper Wire, Fully Insulated Insulation, Polypropylene

Selected 3M 7100166926 3
3M 7100166926 3

Documents

Short Description

3M™ Scotchlok™ Insulation Displacement Connector 558 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated and self stripping.

Features

  • Recommended installation tools - crimping tool no e-9bm, 9 in linemans pliers
  • Designed for control circuit wiring, fixture wiring, appliance wiring, signal and pa systems, automotive/boat/rv wiring
  • Brass u-contact
  • Tin-plated brass element construction for conductivity
  • Suitable for general purpose electrical connections for automotive, boat, van or trailer wiring
  • Operating temperature 221f (105c)
  • For industrial/occupational use only
  • Not for consumer sale or use
  • 600 v maximum, building wire, 1000 v maximum, signs, fixtures and luminaires

Specification

Color
Red
Voltage Rating
600 VAC
Temperature Rating
221 deg F
Finish
TiN Coated
Material
Polypropylene
Wire Size
22 to 16 AWG (Tap)
Insulation Type
Fully Insulated
Wire Type
Solid/Stranded/Tinned/Untinned Copper
Dimensions
0.02 in THK
Specifications
0.12 in OD Maximum Insulation
Type
Flame-Retardant Run/Tap
