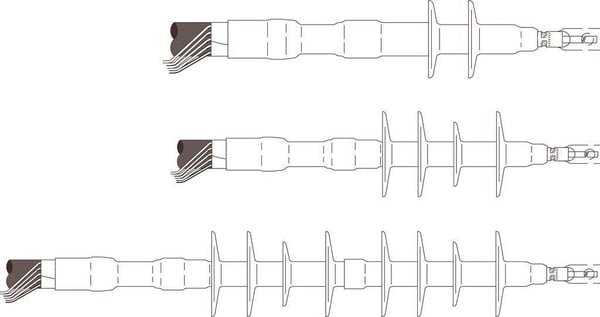

3M™ 7666-S-8 QT-III 7660-S Cold Shrink Termination Kit, 1 Pieces, For Use With Concentric Neutral, Jacketed Concentric Neutral,Single Core Tape Shield, UniShield® and Wire Shield Power Cable, Silicon Rubber, Black
3M™ 7666-S-8 QT-III 7660-S Cold Shrink Termination Kit, 1 Pieces, For Use With Concentric Neutral, Jacketed Concentric Neutral,Single Core Tape Shield, UniShield® and Wire Shield Power Cable, Silicon Rubber, Black
SKU: 3-M7666-S-8
Manufacturer Part Number: 7666-S-8
UPC: 054007424635
Documents
Short Description
Features
- Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables
- High dielectric constant material regulates the distribution of electric field stress
- Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- Conductor size by voltage (5 kV) 1750 to 2000 kcmil, (8 kV) 1500 to 2000 kcmil, (15 kV) 1250 to 2000 kcmil, (25/28 kV) 900 to 1750 kcmil, (35 kV) 700 to 1500 kcmil
- QL2-A-500-1000, QL2-A-1000-1250, QL2-A-350-750 compatible lug
Specification
| Number of Pieces | 1 |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Black |
| Suitable For Use With | Concentric Neutral, Jacketed Concentric Neutral ,Single Core Tape Shield, UniShield® and Wire Shield Power Cable |
| Standard & Approvals | IEEE 48 Class I |
| Specifications | 1-Terminal, 5 to 25/28 kV Voltage, 4/0 AWG to 1500 kcmil Conductor, 200 kV BIL, 1.53 to 2.32 in OD Cable Insulation, 21-1/2 in L Max Installed |
| Includes | 1-Piece 8-Skirt Termination |
| Application | Outdoor Applications |
| Catalog ID | 3-M7666-S-8 |
| Material | Silicon Rubber |
