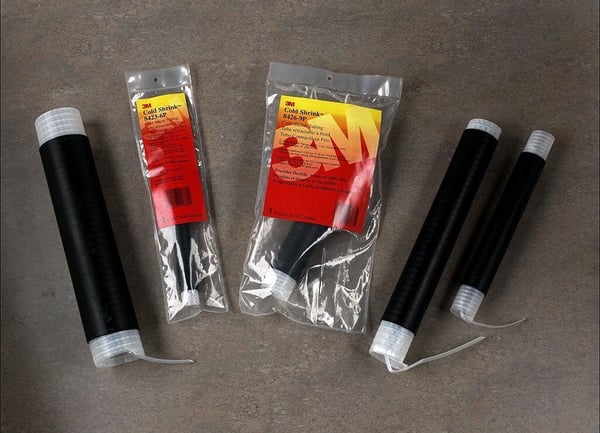

3M™ 8426-9M 8420 Splice Cold Shrink Connector Insulator, 0.4 in Dia Min, 1.18 in Dia Max, 5 in L, 1400 psi Tensile Strength, EPDM

Selected 70000059503M™ 8426-9M 8420 Splice Cold Shrink Connector Insulator, 0.4 in Dia Min, 1.18 in Dia Max, 5 in L, 1400 psi Tensile Strength, EPDM
70000059503M™ 8426-9M 8420 Splice Cold Shrink Connector Insulator, 0.4 in Dia Min, 1.18 in Dia Max, 5 in L, 1400 psi Tensile Strength, EPDM

Documents

Short Description

3M™ cold shrink connector insulators 8420 and 8430 series are designed using 3M™ proprietary cold shrink delivery system. Products are supplied prestretched on a removable core for efficiency and ease of installation. Removal of the core (unwinding) after positioning the splice allows the product to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated EPDM material promotes a permanent, durable environmental seal and insulation.

Features

  • Low voltage single conductor insulated cable
  • 1 kV voltage rating
  • Simple installation, requires no tools
  • Accommodates a wide-range of cable sizes
  • No torches or heat required
  • Good thermal stability
  • Seals tight, retains its resiliency and pressure even after prolonged years of aging and exposure
  • Excellent wet electrical properties
  • Tough rubber formulation withstands backfilling
  • Water-resistant
  • No mastic or tape required to seal
  • Resists acids and alkalis, resists ozone
  • -40 deg f to 194 deg f (-40 deg c to 90 deg C) operating temperature range
  • 2 to 4/0 AWG conductor size
  • 9 in relaxed tube length
  • Polyolefin foam, copper conductor material

Specification

Minimum Order Qty
1
Order Interval
1
Catalog ID
3-M8426-9M
Maximum Diameter
1.18 in
Minimum Diameter
0.4 in
Di-Electric Strength
365 V/mil
Elongation
7.5
Length
5 in
Color
Black
Material
EPDM
