3M™ 8462 8459 Cold Shrink Shield Adapter Kit, For Use With 200 A Load Break Elbow, Up to 600 A Dead Front Modular, Cable Jackets and Semi-Conducting Insulation Shield, Black

Selected 84623M™ 8459 Cold Shrink Shield Adapter Kit, For Use With 200 A Load Break Elbow, Up to 600 A Dead Front Modular, Cable Jackets and Semi-Conducting Insulation Shield, Black
84623M™ 8459 Cold Shrink Shield Adapter Kit, For Use With 200 A Load Break Elbow, Up to 600 A Dead Front Modular, Cable Jackets and Semi-Conducting Insulation Shield, Black

Documents

Short Description

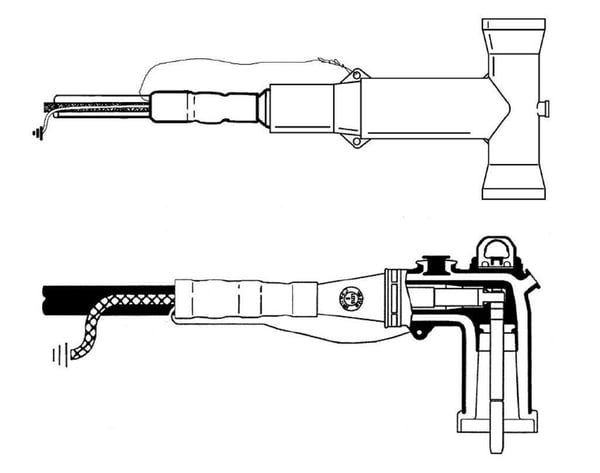

3M™ 8459 cold shrink shield adapter kit is designed to provide sealing and grounding applications on longitudinally corrugated, conventional tape, wire and UniShield® power cables. It is rated for 5 to 8 kV and 600 a cables. This kit offers resistance to acids, alkalis, ozone, ultraviolet light and fungus. 3M™ 8459 cold shrink shield adapter kit includes (1) cold shrink sealing tube, (3) mastic sealing strips, (1) constant force spring, (1) pre-formed unique, integrated ground braid/bleeder wire, (1) strip semi-conductive tape and (1) instruction sheet. It is compatible with semi-conducting insulation shields and cable jackets. This flexible adapter kit maintains the pressure even after years of aging and exposure. It is water-resistant, making it ideal for use with loadbreak elbows and dead front modular splices and other accessories.

Features

  • Splices tape shield, wire shield and UniShield® cables
  • Adapter bleeder wire offers quick and simple installation when soldered to the ground braid
  • Accommodates a wide-range of cable sizes
  • No torch or heat required
  • Seals tight, retains its resiliency and pressure even after years of aging and exposure
  • Water-resistant
  • Resists fungus
  • Resists acids and alkalis
  • Resists ozone and ultraviolet light
  • 1000 kcmil, 1250 kcmil, 1500 kcmil, 1750 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil, 800 kcmil and 900 kcmil conductor
  • 1250 to 1750 kcmil at 15 kV, 1000 to 1500 kcmil at 25 kV and 500 to 1000 kcmil at 35 kV

Specification

Minimum Order Qty
1
Order Interval
1
Color
Black
Standard & Approvals
ANSI C119.1, ASTM D412-75, ASTM D624C-73, ASTM G-21, ASTM D149-75
Suitable For Use With
200 A Load Break Elbow, Up to 600 A Dead Front Modular, Cable Jackets and Semi-Conducting Insulation Shield
Specifications
1.7 to 2.6 in OD Jacket
Includes
Cold Shrink Sealing Tube, (3) Mastic Sealing Strips, Constant Force Spring, Preformed Ground Braid/Bleeder Wire, Strip of Scotch® 13 Semi-Conductive Tape and Instruction Sheet
Application
For used to provide sealing and grounding applications on longitudinally corrugated, conventional tape, wire and UniShield® power cables applications
Catalog ID
3-M8462
