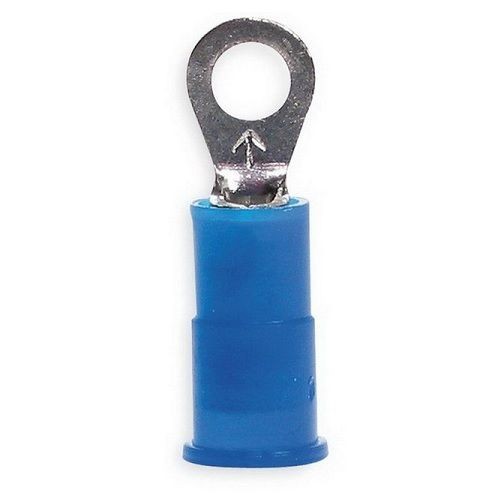

3M™ Scotchlok™ 054007-01421 Insulated Standard Ring Terminal, 16 to 14 AWG Conductor, 0.93 in L, Brazed Seam Barrel
3M™ Scotchlok™ 054007-01421 Insulated Standard Ring Terminal, 16 to 14 AWG Conductor, 0.93 in L, Brazed Seam Barrel
SKU: 3-MMV14-10R/LK
Manufacturer Part Number: MV14-10R/LK
UPC: 054007014218
Short Description
Features
- Blue vinyl insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Standard-style ring tongue fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Crimp termination
- Free hanging (in-line) mounting
- 1000 Terminals/Case
Specification
| Material | Copper |
|---|---|
| Conductor Size | 16 to 14 AWG |
| Voltage Rating | 600/1000 VAC |
| Application | For Building Fixtures or Luminaires, Wires and Signs |
| Barrel Size | 0.09 in ID x 0.25 in L |
| Barrel Type | Brazed Seam |
| Color | Blue |
| Finish | Tin Plated |
| Standard & Approvals | LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed |
| Stud Size | #10 |
| Temperature Rating | -40 to 221 deg F |
| Tongue Size | 0.31 in W x 0.03 in T |
| Tongue Type | Ring |
| Length | 0.93 in |
| Specifications | 0.17 in Dia Maximum Insulation, 0.33 in Clearance |
