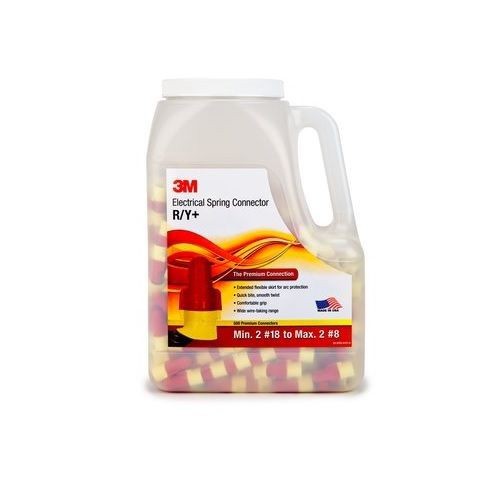

3M™ Performance Plus R/Y+ Flame-Retardant Twist-On Wire Connector, Rounded Wing Shell, Live-Action/Square Wire Spring, 500 count

3M™ Performance Plus R/Y+ Flame-Retardant Twist-On Wire Connector, Rounded Wing Shell, Live-Action/Square Wire Spring, 500 count
SKU: 3-MR/Y+JUG
Manufacturer Part Number: R/Y+JUG
UPC: 054007431558
Documents
Short Description
Features
- Polypropylene and thermoplastic elastomer insulation
- New design allows easier installation, smooth, fast and easy-on the hands
- Flexible skirts provide safety provides protection against potential shock situations
- Simplifies selection of the right connector for a wide range of wiring jobs, there’s also less inventory to manage, and a better chance you'll have the connector you need to do every job
- Corrosion resistant coating
- A better bite for a better connection, wires feed into the connector more easily, improving the security of the connection and increasing the level of pull-out
- 1000 V for signs, fixtures or luminaires
- (2) 18 AWG, (2) 8 AWG, (5) 12 AWG wire combinations
- 500/Jug
Specification
Material | Steel Spring |
---|---|
Voltage Rating | 600 VAC |
Allred Trim Out | YES |
Alpha And Omega Electric Trim Out | YES |
Color | Red/Yellow |
JRD Electric Trim Out | YES |
Shell Style | Rounded Wing |
Spring Type | Live-Action/Square Wire |
Standard & Approvals | C22.2 #188-MI983 File No LR15503 CSA Certified, CE Certified, IEC, RoHS Compliant, UL 486C UL File No E23438 Listed |
Temperature Rating | 221 deg F |
