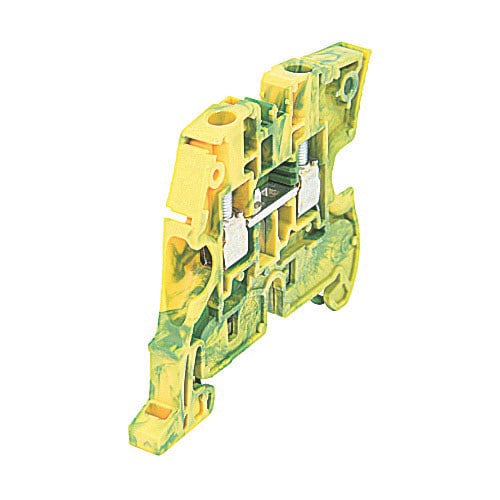

ABB entrelec® 1SNK506150R0000 SNK Terminal Block, 10 AWG Wire, DIN Rail Mount
ABB entrelec® 1SNK506150R0000 SNK Terminal Block, 10 AWG Wire, DIN Rail Mount
SKU: ABB1SNK506150R0000
Manufacturer Part Number: 1SNK506150R0000
UPC: 804325488860
Features
- For 1 sec 720 A rated short time withstand current (Icw), 8000 V rated impulse withstand voltage (Uimp)
- 2200 VAC dielectric test voltage, 3 pollution degree, IP20 degree of protection
- V-0 per UL94 flammability rated
Specification
| Connection Type | Ground |
|---|---|
| Spacing | 6 mm |
| Material | Polyamide |
| Torque Rating | 0.85 N-m |
| Wire Size | 10 AWG |
| Dimensions | 59.5 mm H x 6 mm W x 47.4 mm D |
| Color | Green/Yellow |
| Mounting Type | DIN Rail |
| Terminal Type | Screw Clamp |
| Wire Strip Length | 10.5 mm |
| Series | SNK |
