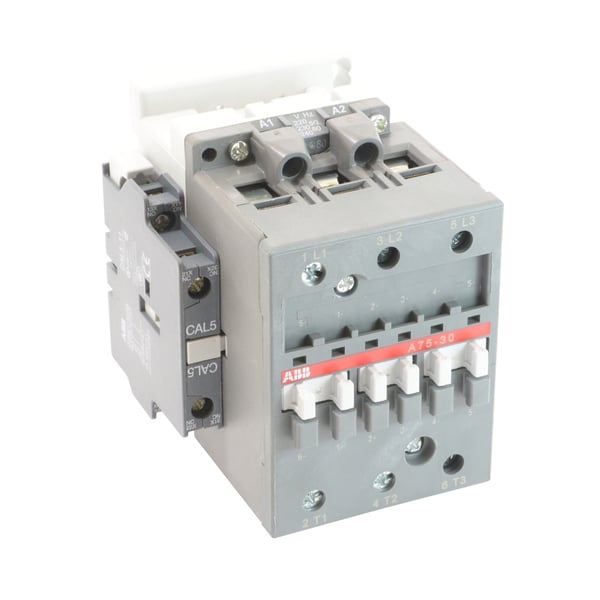

ABB A75-30-11-80 Non-Reversing IEC Contactor, 220 to 230/230 to 240 VAC V Coil, 125 A, 3NO Contact, 3 Poles
ABB A75-30-11-80 Non-Reversing IEC Contactor, 220 to 230/230 to 240 VAC V Coil, 125 A, 3NO Contact, 3 Poles
SKU: ABBA75-30-11-80
Manufacturer Part Number: A75-30-11-80
UPC: 662019880624
Features
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
Specification
| Terminal Type | Screw |
|---|---|
| Series | A Series |
| Size | A75 |
| Contact Configuration | 3NO |
| Dimensions | 82 x 110 x 108 mm |
| Type | Non-Reversing |
| Mounting Type | DIN Rail/Panel |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 3 |
| Contact Rating | 80 A at 690/1000 V AC, 220 V DC |
| Enclosure Type | IP20 |
| Coil Voltage | 220 to 230/230 to 240 V AC |
| Operating Cycles | 3600 Cycles/hr |
| Coil Power Rating | 22 kW |
| Frequency Rating | 50/60 Hz |
| Maximum Load Current | 125 A |
