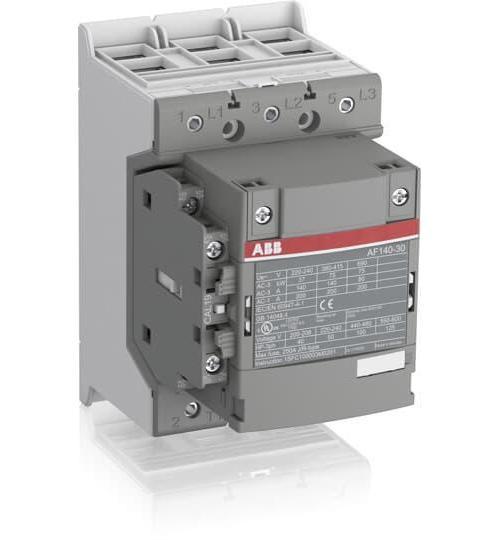

ABB AF140-30-11-13 AF140 3-Phase AC/DC Operated IEC Contactor, 100 to 250 VAC/VDC V Coil, 130 A, 3NO Contact, 3 Poles
ABB AF140-30-11-13 AF140 3-Phase AC/DC Operated IEC Contactor, 100 to 250 VAC/VDC V Coil, 130 A, 3NO Contact, 3 Poles
SKU: ABBAF140-30-11-13
Manufacturer Part Number: AF140-30-11-13
EAN: 3205004769497
UPC: 888614152663
Documents
Short Description
Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- AF series contactor coils are designed to utilize both AC (50/60 Hz) and DC control circuit inputs ranging from 24 to 500 VAC
- Main poles and auxiliary contact blocks 3 main poles, 1 built-in auxiliary contact, front and side mounted add-on auxiliary contact blocks (mechanically linked auxiliary contacts compliant with Annex L of IEC 60947-5-1)
- 8 kV rated impulse withstand voltage
- 600/690 VAC rated insulation voltage
- 3000 m maximum operating altitude permissible
- 40 hp at 208 VAC, 100 hp at 440/480 VAC, 125 hp 550/600 VAC, 50 hp at 220/240 VAC, 40 hp at 200 VAC 3-phase power rating
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 130 A at 220 to 240 VAC 3-phase UL/CSA
- AF contactors can manage large control voltage variations one coil can be used for different control voltages used worldwide without any coil change
Specification
| Coil Voltage | 100 to 250 VAC/VDC |
|---|---|
| Series | AF140 |
| Connection Type | Cable Clamp |
| Operating Temperature | -25 to 50 deg C |
| Wattage | 75 kW |
| Number of Auxiliary Contacts | 1NO-1NC |
| Contact Configuration | 3NO |
| Maximum Load Current | 130 A |
| Contact Type | Non-Reversing |
| Type | 3-Phase AC/DC Operated |
| Dimensions | 150 mm H x 90 mm W x 126 mm D |
| Enclosure Type | IP00/IP20 |
| Number Of Poles | 3 |
| Size | 140 Frame |
| Coil Power Rating | 75 kW, 100 hp, 125 hp |
| Terminal Type | Screw |
| Operating Cycles | 5000000 Cycles |
| Frequency Rating | 50/60 Hz |
