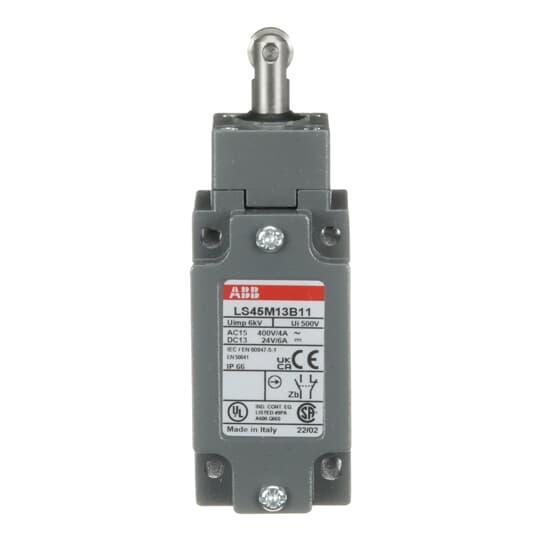

ABB LS45M13B11 LS Series Standard Reinforced Limit Switch, 400 V AC/250 V DC, 1.8/0.27 A, Roller Plunger Actuator, 1NO-1NC Contact

Selected ABB LS45M13B11
ABB LS45M13B11

Documents

Short Description

LS45M13B11 is a 40 mm W, standard reinforced Limit Switch made of zinc alloy material (Zamak), with 4 mounting holes at the top and bottom, 1-1/2 in NPT cable entry on the bottom, stainless steel roller plunger actuator and 1 NO + 1 NC snap action (Zb type) contacts.

Features

  • Visible operation
  • Immune to electromagnetic disturbances
  • 0.55 A at 125 V, 6 A at 24 V, 0.4 A at 250 V, 0.6 A at 110 V rated operational current DC-13
  • Precise operating points
  • 10 A at 24 VAC, 5.5 A at 130 VAC, 3.1 A at 230 VAC, 3 A at 240 VAC, 1.8 A at 400 VAC
  • (4) Mounting holes at the top
  • Easy to use
  • Electrically separated contacts

Specification

Type
Standard Reinforced
Action
Snap
Contact Rating
10 A at 24 V
Size
40 mm W
Operating Temperature
-25 to 70 deg C
Contact Configuration
1NO-1NC
Frequency Rating
50/60 Hz
Operating Cycles
30000000 Cycles
Connection Type
Screw
Enclosure Type
IP66
Material
Aluminum Alloy
Insulation Type
Class I
Voltage Rating
400 V AC/250 V DC
Actuator
Roller Plunger
Series
LS Series
Amperage Rating
1.8/0.27 A
Closed Contact Resistance
25 mOhm
Environmental Conditions
-30 to 80 deg C Storage Temperature, 25 g IEC60068-2-6 Vibration, 50 g IEC60068-2-27 Shock, 3 deg Pollution
