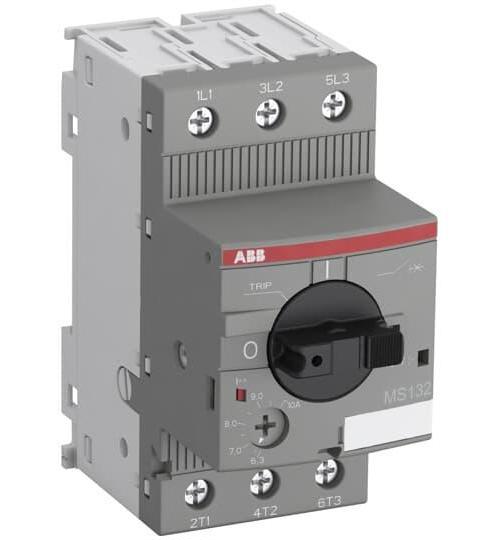

ABB MS132-0.16 MS132 Manual Motor Starter, ON/OFF/Trip Action, 3 Poles, IP20 Enclosure

Selected ABB MS132 0 16
ABB MS132 0 16

Documents

Short Description

The MS116-32 manual motor starter is a compact 45 mm width devices with a rated operational current of 32 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity 10 kA at 400 VAC and the trip class 10a. further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.

Features

  • Handle can be locked in the off position
  • Remote control via undervoltage release or shunt trip
  • Disconnect function
  • Status indication for short-circuit trip
  • Manual control
  • 100000 mechanical, 50000 electrical cycles
  • Trip-free mechanism
  • 0.16 A at 200 VAC 3 ph, 0.16 A at 208 VAC 3 ph, 0.16 A at 220 to 240 VAC 3 ph, 0.16 A at 440 to 480 VAC 3 ph, 0.16 A at 550 to 600 VAC 3 ph
  • Overload protection - trip class 10
  • Temperature compensation
  • Phase loss sensitivity
  • Adjustable current setting for overload protection

Specification

Number Of Poles
3
Voltage Rating
600 VAC
Enclosure Type
IP20
Connection Type
Screw
Full Load Current
0.16 A
Phase
3
Frequency Rating
50/60 Hz
Amperage Rating
0.16 A
Setting
0.1 to 0.16 A
Series
MS132
Operating Cycles
50000/100000 Cycles
Wattage
0.03 kW
Dimensions
45 mm W x 86.75 mm D x 90 mm H
Action
ON/OFF/Trip
Operating Temperature
-25 to 70 deg C
Load Capacity
100 kA
Control Type
Rotary Handle
