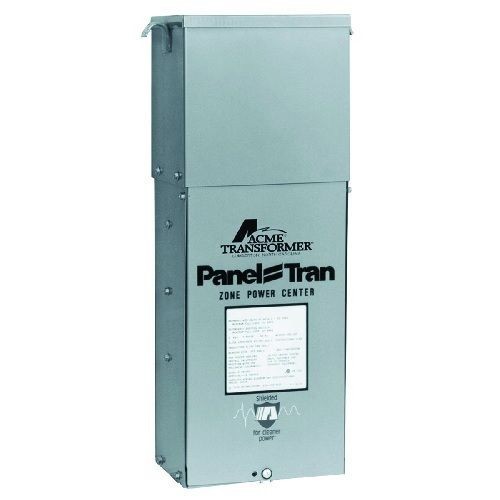

Acme Electric® Panel-Tran® PT061150010LS Zone Power Center, 480 VAC Primary, 120/240 VAC Secondary, 10 kVA, 60 Hz, 1 Phase
Acme Electric® Panel-Tran® PT061150010LS Zone Power Center, 480 VAC Primary, 120/240 VAC Secondary, 10 kVA, 60 Hz, 1 Phase
SKU: ACMPT061150010LS
Manufacturer Part Number: PT061150010LS
UPC: 047503330043
Features
- Zone power centers combine an Acme encapsulated distribution transformer with a power panel assembly in one convenient UL-3R enclosure, for indoor outdoor use and is suitable for use as service entrance equipment
- Acme Electric® Panel-Tran® power center is a pre-wired combination of a primary breaker disconnect, dry-type shielded transformer, secondary breaker disconnect and a secondary power panel all in one convenient package
- You save time, space and money by not having to individually assemble, mount and wire these components
- Simply add the breakers of your choice and you're ready to go
- Primary and secondary main circuit breakers provided, shielded for cleaner power
- Air cooled/dry cooling
- Steel enclosure
- Copper winding, one winding primary, one winding secondary configuration
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Housing Material | Steel |
| Mounting Type | Wall |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 1062 File No. E56936V1, UL Insulation No. H3180, CSA Certified, OSHA Approved, ANSI Specified, IEEE Certified, PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Primary Voltage | 480 VAC |
| Catalog ID | ACMPT061150010LS |
| Secondary Voltage | 120/240 VAC |
| Temperature Rating | 115 deg C |
| Application | Indoor/Outdoor Applications |
| Power Rating | 10 kVA |
| Dimensions | 15.88 in L x 11 in W x 34.38 in H |
| Connection Type | Wire Lead Screw |
| Insulation | Class H/180 deg C |
