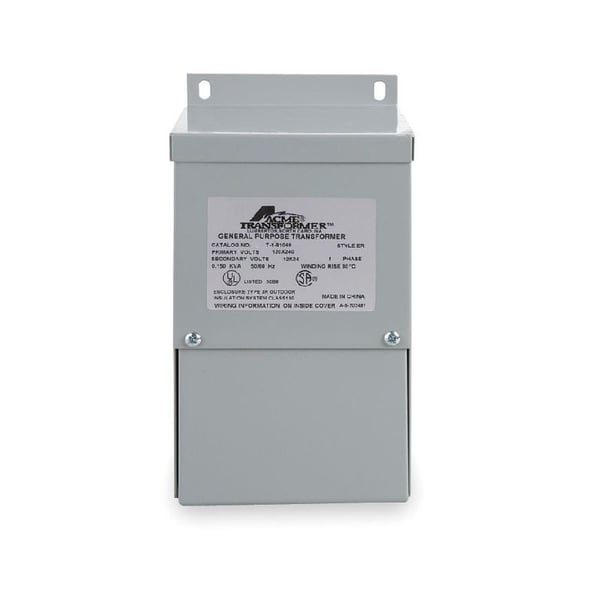

Acme Electric® T111684 Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 15.1 kVA Power Rating, 60 Hz, 1 ph Phase
Acme Electric® T111684 Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 15.1 kVA Power Rating, 60 Hz, 1 ph Phase
SKU: ACMT111684
Manufacturer Part Number: T111684
UPC: 047503171707
Features
- Easily configured for numerous applications
- Lower cost solution
- 5-10 times increase in kVA
- Encapsulated core and coil
- Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT
- The most common exAle is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line
- Buck-boost transformers are an economical way to correct a potentially very serious problem
- Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense
- Single or three phase applications
- Boost voltage 15.1 kVA/62.5 A 220 V line and 242 V load
- Buck voltage 30.6 kVA/132 A 252 V line and 240 V load
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Housing Material | Steel |
| Insulation | Class H/180 deg C |
| Maximum Amperage Rating | 125/62.5 A |
| Mounting Type | Wall |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | ACMT111684 |
| Connection Type | Wire Lead Screw |
| Dimensions | 5.13 in L x 5.5 in W x 11.62 in H |
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| Power Rating | 1.5 kVA |
| Primary Voltage | 120/240 VAC |
| Secondary Voltage | 12/24 VAC |
| Temperature Rating | 115 deg C |
| Type | Encapsulated |
| Application | For low voltage lighting or control circuitry |
| Standard & Approvals | UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE |
