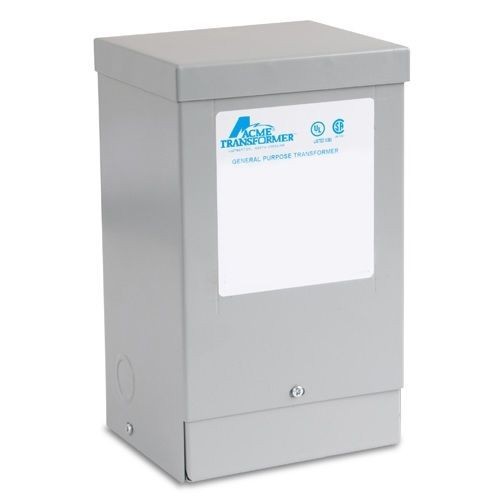

Acme Electric® T181058 Isolation Buck Boost Transformer, 120/240 VAC Primary, 16/32 VDC Secondary, 7.5 kVA Power Rating, 50/60 Hz, 1 ph Phase

Selected Acme Electric® T181058 Isolation Buck Boost Transformer, 120/240 VAC Primary, 16/32 VDC Secondary, 7.5 kVA Power Rating, 50/60 Hz, 1 ph Phase
Acme Electric® T181058 Isolation Buck Boost Transformer, 120/240 VAC Primary, 16/32 VDC Secondary, 7.5 kVA Power Rating, 50/60 Hz, 1 ph Phase

Documents

Features

  • Encapsulated core and coil
  • Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT
  • The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line
  • Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense
  • Buck-boost transformers are an economical way to correct a potentially very serious problem

Specification

Frequency Rating
60 Hz
Housing Material
Steel
Insulation
Class H/180 deg C
Maximum Amperage Rating
31.2/15.6 A
Mounting Type
Wall
Phase
1
Power Rating
0.5 kVA
Primary Voltage
120/240 VAC
Secondary Voltage
16/32 VAC
Temperature Rating
115 deg C
Application
For low voltage lighting or control circuitry
Enclosure Type
NEMA 3R
Connection Type
Wire Lead Screw
Dimensions
4.2 in L x 4.37 in W x 9.06 in H
Standard & Approvals
UL 506, File No E79947V1, 50B8, B3223 Listed, CSA Certified, OSHA Compliant, ANSI Approved, IEEE
Type
Isolation
