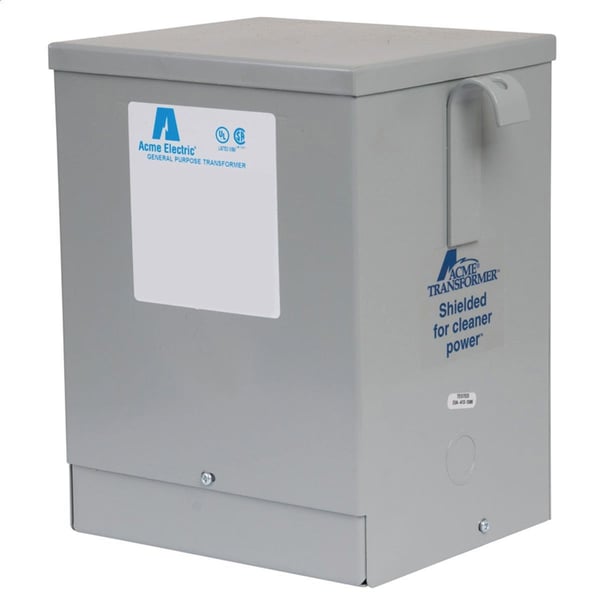

Acme Electric® T2531141S Dry Distribution Encapsulated Isolation Transformer, 600 VAC Primary, 120/240 VAC Secondary, 5 kVA Power Rating, 60 Hz, 1 ph Phase
Acme Electric® T2531141S Dry Distribution Encapsulated Isolation Transformer, 600 VAC Primary, 120/240 VAC Secondary, 5 kVA Power Rating, 60 Hz, 1 ph Phase
SKU: ACMT2531141S
Manufacturer Part Number: T2531141S
UPC: 047503086551
Documents
Features
- Ground studs for use with non-metallic conduit
- Quiet operation with sound levels well below NEMA standards
- Electrostatic shield for enhanced protection
- Three Windings
Specification
| Minimum Order Qty | 1 |
|---|---|
| Order Interval | 1 |
| Catalog ID | ACMT2531141S |
| Standard & Approvals | UL 506, CSA C22.2 No. 47, Meet CSA C802.2 Efficiency, CE Certified, PROP65: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Power Rating | 5 kVA |
| Primary Voltage | 600 VAC |
| Secondary Voltage | 120/240 VAC |
| Temperature Rating | 115 deg C |
| Connection Type | Wire Lead |
| Enclosure Type | NEMA 3R |
| Frequency Rating | 60 Hz |
| Mounting Type | Wall |
| Type | Dry Distribution Encapsulated |
| Insulation | Class H/180 deg C |
| Dimensions | 7.13 in L x 10.31 in W x 14.38 in H |
| Phase | 1 ph |
