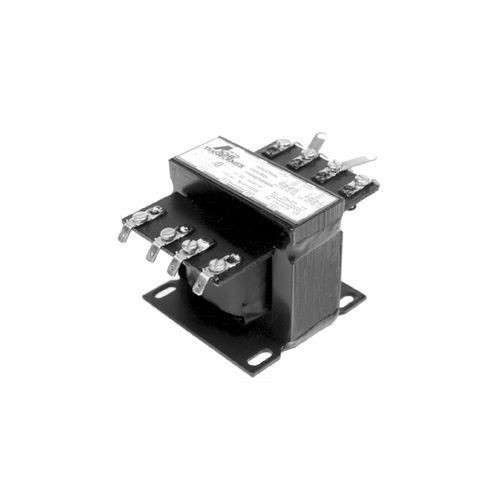

Acme Electric® TA281219 TA Series Industrial Control Transformer, 240/480, 230/460, 220/440 VAC Primary, 110/115/120 VAC Secondary, 2000 VA Power Rating, 50/60 Hz, 1 Phase

Pick Up Only
Selected Acme Electric® TA281219 TA Series Industrial Control Transformer, 240/480, 230/460, 220/440 VAC Primary, 110/115/120 VAC Secondary, 2000 VA Power Rating, 50/60 Hz, 1 Phase
Acme Electric® TA281219 TA Series Industrial Control Transformer, 240/480, 230/460, 220/440 VAC Primary, 110/115/120 VAC Secondary, 2000 VA Power Rating, 50/60 Hz, 1 Phase

Documents

Short Description

Industrial control transformers are used to reduce supply voltages to 230 V or lower for the operation of electromagnetic devices such as contactors, solenoids, relays, and timers. They are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.

Features

  • Constructed out of electrical lamination with precision wound coils
  • Primary and secondary fuse kits easily adaptable
  • Series-parallel connecting links save wiring and labor costs
  • Mounting plate adapts to various mounting dimensions
  • Optional secondary fuse kits available
  • Open core and coil
  • Acme industrial control transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety
  • Designs incorporate precision wound coils for improved regulation
  • Sturdy phenolic terminal panel protects the coil from foreign objects and mechanical damage
  • Copper windings on all groups
  • 240 x 480, 230 x 460, 220 x 440 VAC primary volt
  • 110/115/120 VAC secondary volt

Specification

Frequency Rating
50/60 Hz
Mounting Type
Floor
Phase
1
Power Rating
2000 VA
Standard & Approvals
UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number B3223, CSA File Number 7357, OSHA Compliant, ANSI, IEEE
Connection Type
Screw
Enclosure Type
Open
Dimensions
6.75 in L x 3.8231 in W x 5.72 in H
Temperature Rating
80 deg C
Secondary Voltage
120 VAC
Primary Voltage
240/480 VAC
Maximum Amperage Rating
16.67 A
Insulation
130 deg C
