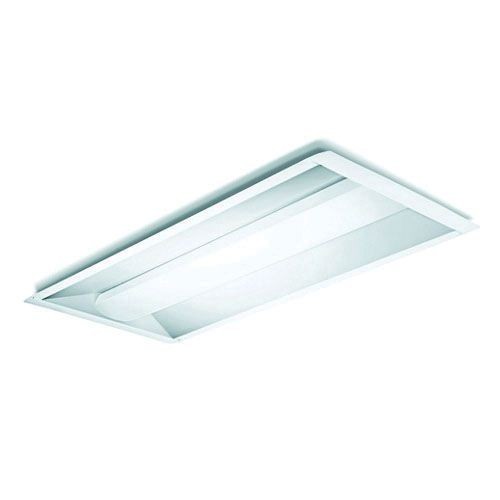

Advance 516369 Retrofit Kit, 4 ft L x 2 ft W x 2.95 in H, Galvanized Steel

Pick Up Only
Selected 516369Advance 516369 Retrofit Kit, 4 ft L x 2 ft W x 2.95 in H, Galvanized Steel
516369Advance 516369 Retrofit Kit, 4 ft L x 2 ft W x 2.95 in H, Galvanized Steel

Documents

Short Description

Philips EvoKit LED retrofit kit gen 4 is an energy efficient LED alternative to traditional linear fluorescent troffers. Not only does it offer energy savings, it also helps reduce maintenance costs due to its long lifetime. Simple construction helps decrease the installation time meaning you can have an LED solution in your ceiling in just minutes.

Features

  • Occupancy sensing, daylight harvesting and task tuning in one device
  • Granular dimming (occupancy sharing)
  • Dwell time
  • Scene setting
  • Configuration of sensor parameters - if desired - using NFC or IR via intuitive android based Philips field apps
  • Quick task tuning in the field to optimize light and power levels
  • Enables auto-off/manual-on and auto-off/partial-on application
  • DLC qualified - listed on the QPL for networked lighting controls
  • Installation savings - integral wireless controls factory installed, no need to order separate components
  • Minimal startup and configuration expertise - savings on labor time and effort
  • Deep energy savings and code compliance strategies
  • Faster ROI with attractive payback periods (varies depending on luminaire choices)
  • 0 to 10 V dimming satisfies universal voltage requirements

Specification

Lamp Type
LED
Material
Galvanized Steel
Mounting Type
Recessed
Standard & Approvals
cULus Listed, DLC Listed
Finish
Powder Coated
Includes
0 to 10 V Dimming Driver, Ribbed Diffuser
Fixture Wattage
31 W
Application
Conference Rooms, Individual Offices, Open Offices, Classrooms, Storage and Break Areas, Restrooms, Lobbies
Specifications
120 to 277 V, 4200 Lumens, 4000 K
Size
4 ft L x 2 ft W x 2.95 in H
