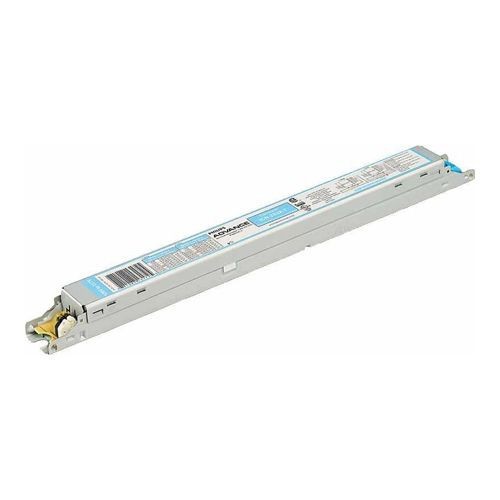

Advance Centium® ICN3S14T35M Electronic Fluorescent Ballast, T5 Lamp, 14 W Lamp, 120 to 277 VAC, Programmed/Rapid, 1 Ballast Factor

Selected ICN3S14T35MAdvance Centium® ICN3S14T35M Electronic Fluorescent Ballast, T5 Lamp, 14 W Lamp, 120 to 277 VAC, Programmed/Rapid, 1 Ballast Factor
ICN3S14T35MAdvance Centium® ICN3S14T35M Electronic Fluorescent Ballast, T5 Lamp, 14 W Lamp, 120 to 277 VAC, Programmed/Rapid, 1 Ballast Factor

Documents

Short Description

Philips Advance Centium® ballasts for t5 lamps at 120 to 277 VAC are now available with our industry leading N-can at 9.5 x 1.3 x 1 in or T-can at 14.17 x 1.18 x 1.06 in, which provides fixture manufacturers increased versatility in their newer generation fixture designs. These ballasts are compatible with all major energy saving T5 linear lamps and have a variety of other features which makes them ideal for a variety of applications. The ballasts programmed start ignition provides extended lamp life in frequent switching applications such as those where occupancy sensors are being used. They also feature lamp End-Of-Life (EOL) protection circuitry which safely removes power from the lamp at the end of lamp life.

Features

  • High power factor

Specification

Frequency Rating
50/60 Hz
Lamp Type
T5
Lamp Wattage
14 W
Material
Metal
Number of Lamps
3
Temperature Range
70 deg C
Thermal Protection
Class P
Voltage Rating
120 to 277 VAC
Wattage
50 W
Standard & Approvals
UL Listed, CSA Certified
Ballast Factor
1
Dimmable
No
Application
Lighting Luminaire Component and Outdoor Applications
Total Harmonic Distortion
10 %
Start Type
Programmed/Rapid
Power Factor
1
Dimensions
14.17 in L x 1.18 in W x 1.06 in H
Amperage Rating
0.18 to 0.42 A
