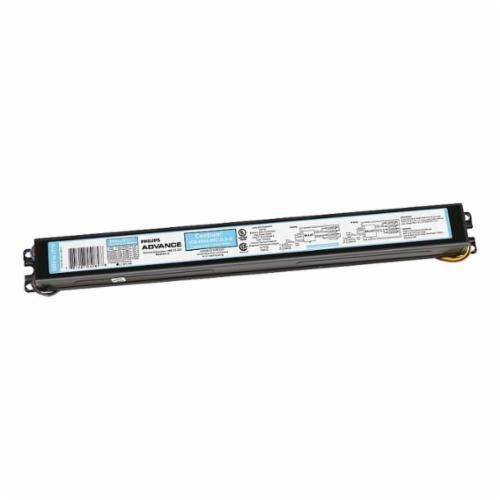

Advance OPTANIUM IOPA2P32LWN35I Electronic Fluorescent Ballast, T8 Lamp, 32 W Lamp, 120 to 277 VAC, Instant/Rapid, 0.77 Ballast Factor
Advance OPTANIUM IOPA2P32LWN35I Electronic Fluorescent Ballast, T8 Lamp, 32 W Lamp, 120 to 277 VAC, Instant/Rapid, 0.77 Ballast Factor
SKU: ADVIOPA2P32LWN35I
Manufacturer Part Number: IOPA2P32LWN35I
UPC: 781087086803
Documents
Short Description
Features
- High power factor
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Lamp Type | T8 |
| Lamp Wattage | 32 W |
| Material | Metal |
| Minimum Starting Temperature | -20 deg F |
| Number of Lamps | 2 |
| Power Factor | 0.98 |
| Start Type | Instant |
| Temperature Range | 70 deg C |
| Total Harmonic Distortion | 0.1 |
| Voltage Rating | 120 to 277 VAC |
| Application | Outdoor Use |
| Standard & Approvals | UL Listed, CSA Certified, RoHS Compliant |
| Dimensions | 9.5 in L x 1.3 in W x 1 in H |
| Dimmable | No |
| Enclosure Type | NEMA 21 |
| Ballast Factor | 0.77 |
| Amperage Rating | 0.17 to 0.4 A |
