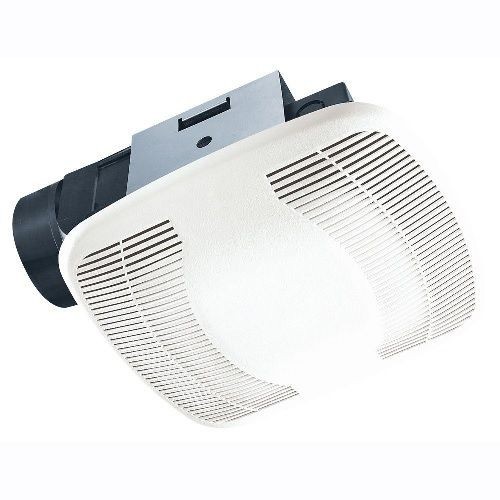

Air King® ENERGY STAR® BFQ50 Heavy Duty Exhaust Fan, 50 cfm, 4 in Dia Duct, 17.4 W, 120 VAC, 0.3 A, 0.6 sones, Import
Air King® ENERGY STAR® BFQ50 Heavy Duty Exhaust Fan, 50 cfm, 4 in Dia Duct, 17.4 W, 120 VAC, 0.3 A, 0.6 sones, Import
SKU: AIKBFQ50
Manufacturer Part Number: BFQ50
UPC: 083162903044
Features
- Polymeric grill secured in place with torsion springs easily removed if necessary
- One piece polymeric wheel 5-1/8 in diameter, 2-3/8 in Width, with 48-fins
- Heavy duty, permanently split capacitor, plug-in, 4-pole motor, life time lubrication
- Suitable for continuous operation
- Plastic collar for 4 in duct connection, comes complete with built-in non-metallic back draft damper for quiet operation
- Designed to mount in ceilings with at least 6 in of clearance
- The unit is mounted directly to the joist using a separate lock-in bracket
- The housing will mount through drywall thickness up-to 3/4 in, with a rough-in opening of 8-11/16 in x 9-1/8 in
- 1225 rpm fan speed
Specification
| Frequency Rating | 60 |
|---|---|
| Grille Material | Polymeric |
| Mounting Type | Ceiling |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | White |
| Type | Heavy Duty |
| Voltage Rating | 120 VAC |
| Standard & Approvals | cUL/UL Listed |
| Housing Height | 4/3/2004 12:00:00 AM |
| Housing Length | 9/1/2008 12:00:00 AM |
| Housing Width | 8/1/2002 12:00:00 AM |
| Catalog ID | AIKBFQ50 |
| Amperage Rating | 0.3 A |
| Housing Material | ABS/Polycarbonate |
| Grille Width | 10 |
| Grille Length | 10 |
| Application | For bathrooms up to 45 sq-ft and other rooms up to 60 sq-ft |
| Power Rating | 17.4 |
| Flow Rate | 50 |
| Duct Diameter | 4 |
| Series | BFQ |
