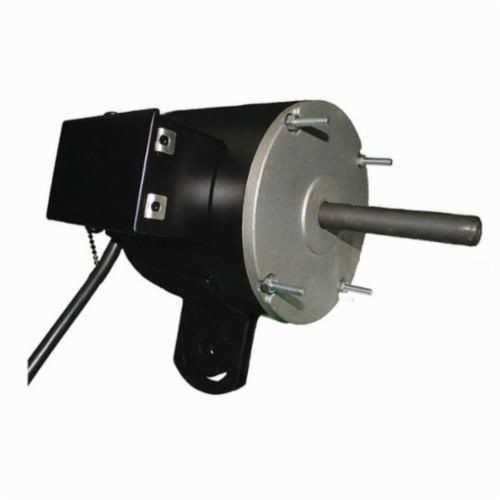

Airmaster® 78018 Commercial Non-Oscillating Motor With Supply Cord and Plug, 115 VAC, 1/4 hp, 5/8 in Dia x 3-1/2 in L Shaft, Domestic
Airmaster® 78018 Commercial Non-Oscillating Motor With Supply Cord and Plug, 115 VAC, 1/4 hp, 5/8 in Dia x 3-1/2 in L Shaft, Domestic
SKU: AIRC-1A
Manufacturer Part Number: 78018
UPC: 783429780189
Features
- Class B, Yoke mounting, ball bearing motor
- Auto thermal protection, CWSE motor shaft rotation
- Pedestal fan sub application
- 6-1/4 in depth
- For commercial air circulators
- 3 speed, 1100 rpm nameplate, 3.5 A full load, 60 Hz, 1 phase, 48YZ frame, 1 motor service factor, 40 deg C ambient temperature, 5-3/4 in body dia, 1001-1100 rpm
Specification
| Overall Height | 26.9 in |
|---|---|
| Shaft Diameter | 5/8 in |
| Shaft Length | 3-1/2 in |
| Type | Commercial, Totally Enclosed |
| Voltage Rating | 115 VAC |
| Standard & Approvals | UL/cUL Listed, OSHA Approved |
| Domestic/Import | Import |
| Horsepower | 1/4 hp |
