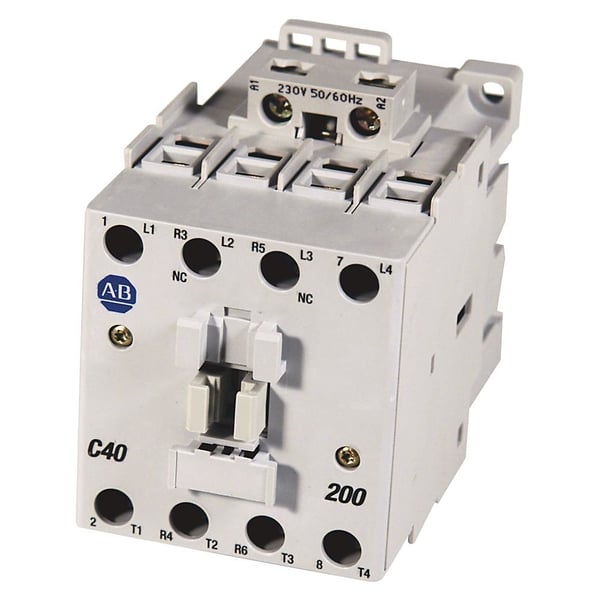

Allen-Bradley, 100-C40D200, 100-C IEC Contactor, Screw Terminals, Line Side, 37A, 2 N.O. 2 N.C. Main Contact Configuration
Allen-Bradley, 100-C40D200, 100-C IEC Contactor, Screw Terminals, Line Side, 37A, 2 N.O. 2 N.C. Main Contact Configuration
SKU: A-B100C40D200
Manufacturer Part Number: 100-C40D200
UPC: 611320813951
Documents
Specification
| No of Poles | 4 Poles |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| 1-Phase HP (60 Hz) 230V Rating | 5 |
| 3-Phase HP (60 Hz) 230V Rating | 10 |
| 3-Phase kW (50 Hz) 400V/415V Rating | 18.5/20 |
| 3-Phase kW (50 Hz) 500V Rating | 20 |
| 3-Phase kW (50 Hz) 690V Rating | 18.5 |
| 3-Phase kW (50 Hz) 230V Rating | 11 |
| 3-Phase HP (60 Hz) 575V Rating | 30 |
| 3-Phase HP (60 Hz) 460V Rating | 25 |
| 3-Phase HP (60 Hz) 200V Rating | 10 |
| Rated Operating Current, AC-3 | 37A |
| Package Quantity | 1 |
| Contact Configuration | 2 N.O. 2 N.C. Main Contact Configuration |
| Connection | Screw Terminals |
| Coil Voltage | 110V 50Hz / 120V 60Hz |
| Coil Termination | Line Side |
| Catalog ID | A-B100C40D200 |
