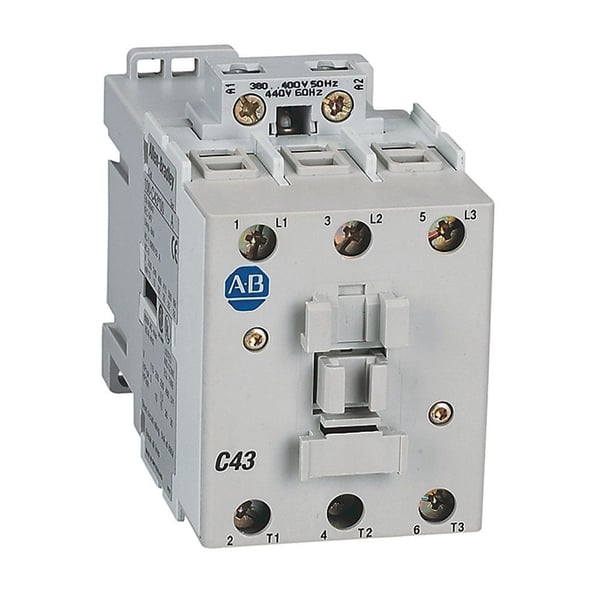

Allen-Bradley 100-C43KA10 100-C IEC Contactor, 240V 50/60Hz, Screw Terminals, Line Side, 43A, 1 N.O. 0 N.C. Auxiliary Contact Configuration
Allen-Bradley 100-C43KA10 100-C IEC Contactor, 240V 50/60Hz, Screw Terminals, Line Side, 43A, 1 N.O. 0 N.C. Auxiliary Contact Configuration
SKU: A-B100C43KA10
Manufacturer Part Number: 100-C43KA10
UPC: 662468629959
Documents
Specification
| Number Of Poles | 3 Poles |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| 1-Phase HP (60 Hz) 230V Rating | 7.5 |
| 3-Phase HP (60 Hz) 200V Rating | 10 |
| 3-Phase HP (60 Hz) 230V Rating | 15 |
| 3-Phase HP (60 Hz) 460V Rating | 30 |
| 3-Phase HP (60 Hz) 575V Rating | 30 |
| 3-Phase kW (50 Hz) 230V Rating | 13 |
| 3-Phase kW (50 Hz) 400V/415V Rating | 22 |
| 3-Phase kW (50 Hz) 500V Rating | 25 |
| 3-Phase kW (50 Hz) 690V Rating | 22 |
| Catalog ID | A-B100C43KA10 |
| Coil Termination | Line Side |
| Coil Voltage | 240V 50/60Hz |
| Contact Configuration | 1 N.O. 0 N.C. Auxiliary Contact Configuration |
| Package Quantity | 1 |
| Rated Operating Current, AC-3 | 43A |
| Connection | Screw Terminals |
