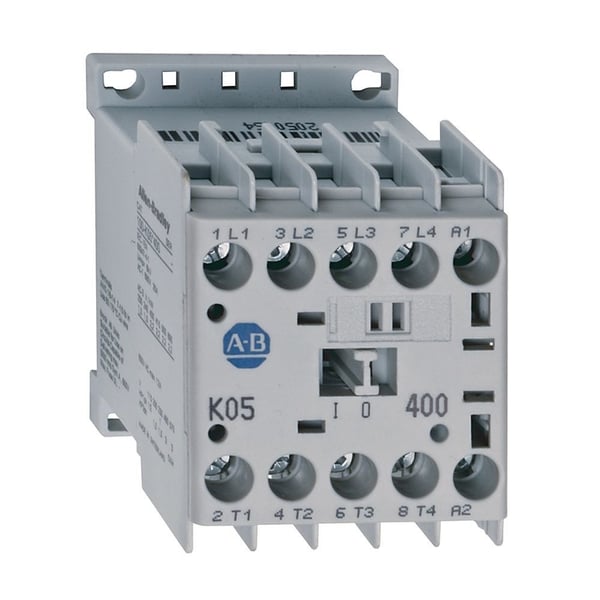

Allen-Bradley, 100-K05DJ10, Miniature Contactor, Screw Type Terminals, 5 A, System Control Voltage: 24 (17...30)V DC Diode, 3 N.O. Main Contacts, 1 N.O. Auxiliary Contact, 1
Allen-Bradley, 100-K05DJ10, Miniature Contactor, Screw Type Terminals, 5 A, System Control Voltage: 24 (17...30)V DC Diode, 3 N.O. Main Contacts, 1 N.O. Auxiliary Contact, 1
SKU: A-B100K05DJ10
Manufacturer Part Number: 100-K05DJ10
UPC: 662074490738
Specification
| Main Contact Configuration | 3 N.O. |
|---|---|
| No of Poles | 3 Poles |
| Package Quantity | 1 |
| 1-Phase HP (60 Hz) 230V Rating | 1 |
| 3-Phase HP (60 Hz) 200V Rating | 1.5 |
| 3-Phase HP (60 Hz) 230V Rating | 1.5 |
| 3-Phase HP (60 Hz) 460V Rating | 3 |
| 3-Phase HP (60 Hz) 575V Rating | 3 |
| 3-Phase kW (50 Hz) 230V Rating | 1.5 |
| 3-Phase kW (50 Hz) 400V/415V Rating | 2.2 |
| 3-Phase kW (50 Hz) 500V Rating | 2.2 |
| 3-Phase kW (50 Hz) 690V Rating | 2.2 |
| Contactor Size | 12/31/1899 5:00:00 AM |
| Connection | Screw Type Terminals |
| Coil Voltage | 24 (17...30)V DC Diode |
| Auxiliary Contact Configuration | 1 N.O. |
