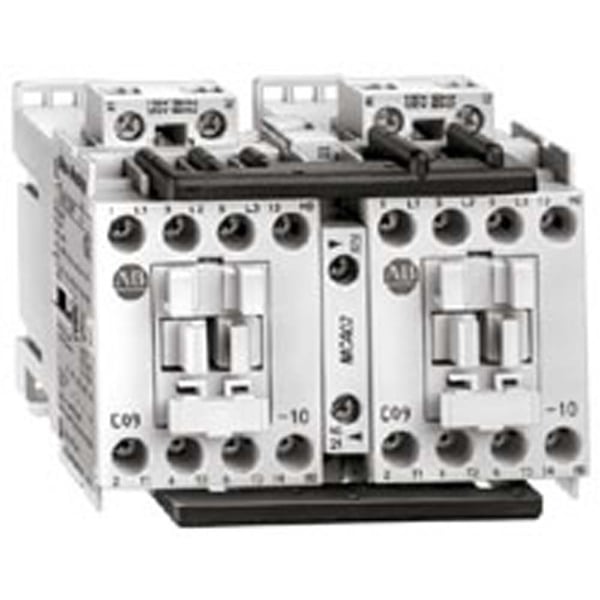

Allen-Bradley, 104-C Reversing Contactors, 9A, Line Side, 200-220V 50Hz / 208-240V 60Hz, 1 N.O. 1 N.C.
Allen-Bradley, 104-C Reversing Contactors, 9A, Line Side, 200-220V 50Hz / 208-240V 60Hz, 1 N.O. 1 N.C.
SKU: A-B104C09L22
Manufacturer Part Number: 104-C09L22
UPC: 662468987851
Documents
Specification
| Rated Operating Current, AC-3 | 9A |
|---|---|
| 1-Phase HP (60 Hz) 230V Rating | 1.5 |
| 3-Phase HP (60 Hz) 200V Rating | 2 |
| 3-Phase HP (60 Hz) 230V Rating | 2 |
| 3-Phase HP (60 Hz) 460V Rating | 5 |
| 3-Phase HP (60 Hz) 575V Rating | 7.5 |
| 3-Phase kW (50 Hz) 230V Rating | 3 |
| 3-Phase kW (50 Hz) 400V/415V Rating | 4 |
| 3-Phase kW (50 Hz) 500V Rating | 4 |
| 3-Phase kW (50 Hz) 690V Rating | 4 |
| Auxiliary Contact Configuration | 1 N.O. 1 N.C. |
| Coil Termination | Line Side |
| Coil Voltage | 200-220V 50Hz / 208-240V 60Hz |
| Connection | Screw Terminals |
