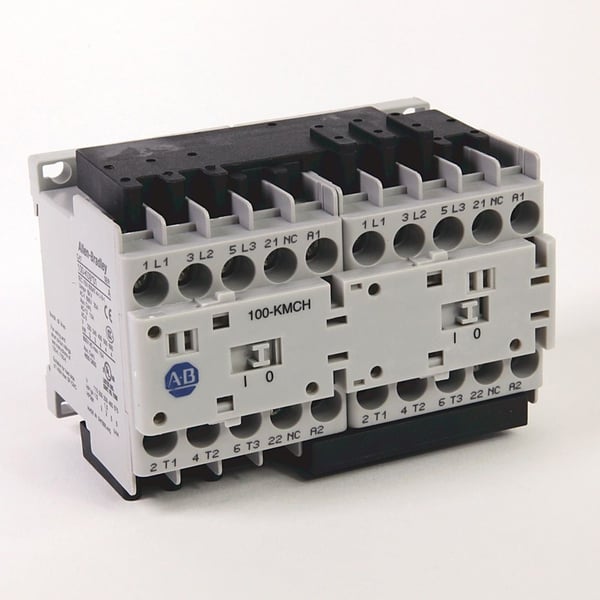

Allen-Bradley 104-K09B02 104-K Mini Reversing Contactors, Screw Type Terminals, 9 A, System Control Voltage: 440V 50Hz/480V 60Hz, 3 N.O. Main Contacts, 1 N.C. Auxiliary Contact
Allen-Bradley 104-K09B02 104-K Mini Reversing Contactors, Screw Type Terminals, 9 A, System Control Voltage: 440V 50Hz/480V 60Hz, 3 N.O. Main Contacts, 1 N.C. Auxiliary Contact
SKU: A-B104K09B02
Manufacturer Part Number: 104-K09B02
UPC: 662074499045
Documents
Specification
| Hp, 200V (60 Hz), 3-Phase | 2 |
|---|---|
| Hp, 230V (60 Hz), 3-Phase | 2 |
| Hp, 460V (60 Hz), 3-Phase | 5 |
| Hp, 575V (60 Hz), 3-Phase | 5 |
| kW, 230V (50 Hz), 3-Phase | 3 |
| kW, 400/415V (50 Hz), 3-Phase | 4 |
| kW, 500V (50 Hz), 3-Phase | 4 |
| kW, 690V (50 Hz), 3-Phase | 4 |
| Main Contact Configuration | 3 N.O. |
| Number Of Poles | 3 Poles |
| Phases | 3 Phase |
| Auxiliary Contact Configuration (Per Contactor) | 1 N.C. |
| Coil Voltage | 440V 50Hz/480V 60Hz |
| Connection | Screw Type Terminals |
| Rated Operating Current | 12/31/1899 9:00:00 AM |
