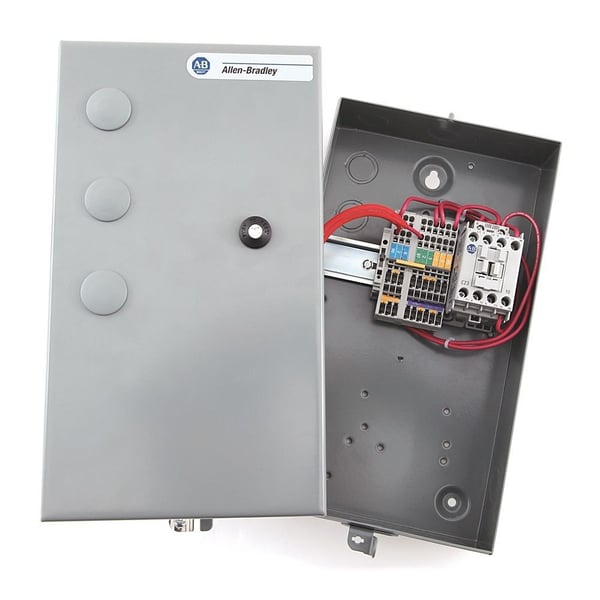

Allen-Bradley, 109-C09FDE1C, Bulletin 109 - IEC Non-Reversing Starter - Enclosed Style, IP66 (Type 3/4/12 - Metal), 9 Amp, 110V 50Hz / 120V 60Hz

Selected 109-C09FDE1CAllen-Bradley, 109-C09FDE1C, Bulletin 109 - IEC Non-Reversing Starter - Enclosed Style, IP66 (Type 3/4/12 - Metal), 9 Amp, 110V 50Hz / 120V 60Hz
109-C09FDE1CAllen-Bradley, 109-C09FDE1C, Bulletin 109 - IEC Non-Reversing Starter - Enclosed Style, IP66 (Type 3/4/12 - Metal), 9 Amp, 110V 50Hz / 120V 60Hz

Specification

Full Load Current Range
1.0 - 5.0 Amps
Max. Hp, (200V) Three-Phase
2
Max. Hp, (230V) Three-Phase
2
Max. Hp, (460V) Three-Phase
5
Max. kW, (380/415V)Three-Phase
4
Minimum Order Qty
1
Order Interval
1
Catalog ID
A-B109C09FDE1C
Enclosure Type
NEMA Type 3/4/12 - IP66 (Metal)
Overload Relay
MCS-E1 Plus Class 10, 15, 20, 30 w/Automatic Reset (Three Phase)
Phases
Three Phase
Amperage Rating
9 A
Max. Hp, (115V) Single-Phase
1/2/2025 12:00:00 AM
Max. Hp, (230V) Single-Phase
1/1/2002 12:00:00 AM
Max. Hp, (575V) Three-Phase
7/1/2002 12:00:00 AM
