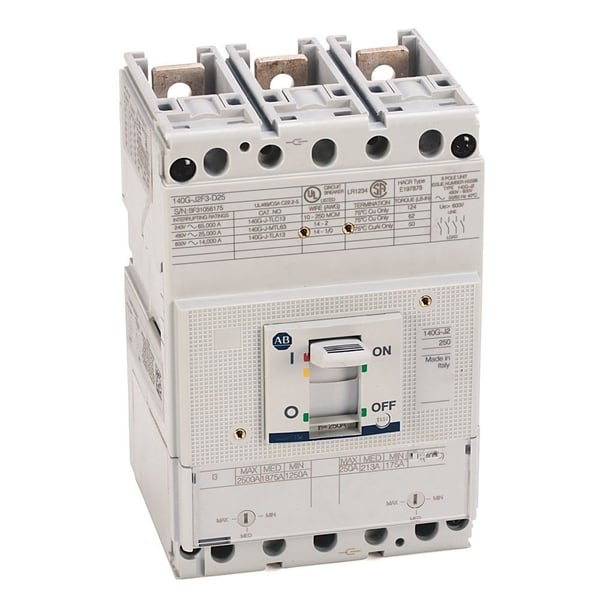

Allen-Bradley, 140G - Molded Case Circuit Breaker, J frame, 25 kA, T/M - Thermal Magnetic, Rated Current 225 A
Allen-Bradley, 140G - Molded Case Circuit Breaker, J frame, 25 kA, T/M - Thermal Magnetic, Rated Current 225 A
SKU: A-B140GJ2F3D22
Manufacturer Part Number: 140G-J2F3-D22
UPC: 885630568775
Documents
Specification
| Frame/Rating | J Frame (250 A) |
|---|---|
| Interrupting Rating, 50/60 Hz, 240V (kA) | 65 |
| Interrupting Rating, 50/60 Hz, 480V (kA) | 25 |
| Interrupting Rating, 50/60 Hz, 600V (kA) | 14 |
| Number Of Poles | 3 Poles |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Breaking Capacity, 50/60 Hz, 220V (kA) | 65 |
| Breaking Capacity, 50/60 Hz, 415V (kA) | 36 |
| Breaking Capacity, 50/60 Hz, 440V (kA) | 36 |
| Breaking Capacity, 50/60 Hz, 690V (kA) | 10 |
| Bulletin Number | 140G - Molded Case Circuit Breaker |
| Catalog ID | A-B140GJ2F3D22 |
| Protection | T/M - Thermal Magnetic |
