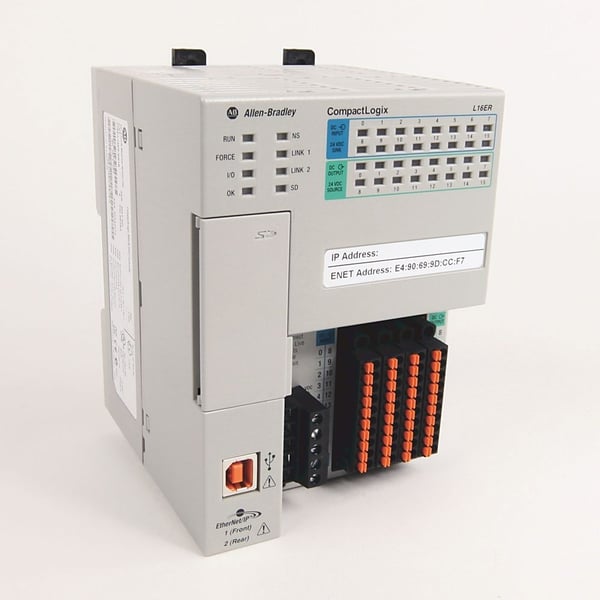

Allen-Bradley, 1769-L16ER-BB1B, CompactLogix 5370 L1 Controller, Dual Ethernet w/DLR capability, 384KB Memory, 6 I/O Expansion via 1734 POINT I/O, 4 Ethernet IP Nodes, 24VDC

Selected 1769-L16ER-BB1BAllen-Bradley, 1769-L16ER-BB1B, CompactLogix 5370 L1 Controller, Dual Ethernet w/DLR capability, 384KB Memory, 6 I/O Expansion via 1734 POINT I/O, 4 Ethernet IP Nodes, 24VDC
1769-L16ER-BB1BAllen-Bradley, 1769-L16ER-BB1B, CompactLogix 5370 L1 Controller, Dual Ethernet w/DLR capability, 384KB Memory, 6 I/O Expansion via 1734 POINT I/O, 4 Ethernet IP Nodes, 24VDC

Specification

PowerSupply
24V DC input, non-isolated, Class 2
Type
Standard Controller
Embedded Network Port
2 Ethernet
Depth
105mm, 4.13"
Communication
Ethernet , USB
Width
3.94 in
Output Signal
10-30 VDC
Operating Temperature
-20...60 °C (-4...140 °F)
Number of Channels
32
Memory
0.375MB
Local Programming Port
USB/Ethernet
Isolation
50V (continuous), Basic Insulation Type, Tested at 500V AC for 60 s, System to Field
Input Signal
10-30 VDC
Height
5.18 in
Mounting
DIN Rail / Panel Mount
Enclosure
None (open-style)
Display
Status LEDs
