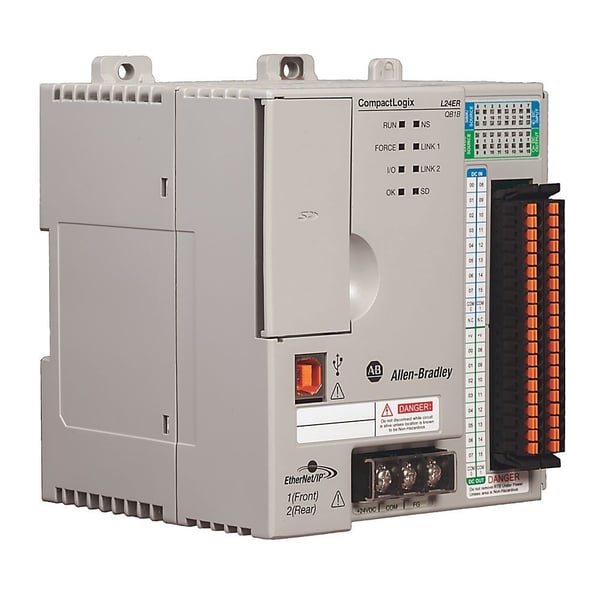

Allen-Bradley, 1769-L24ER-QB1B, CompactLogix 5370 L2 Controller, 2 EtherNet/IP ports, 750KB Memory, 16 DC Inputs, 16 DC Outputs, Up To 4 1769 I/O Expansion Modules, 8 EtherNet/IP and 120 TCP Connections, 24V DC

Selected 1769-L24ER-QB1BAllen-Bradley, 1769-L24ER-QB1B, CompactLogix 5370 L2 Controller, 2 EtherNet/IP ports, 750KB Memory, 16 DC Inputs, 16 DC Outputs, Up To 4 1769 I/O Expansion Modules, 8 EtherNet/IP and 120 TCP Connections, 24V DC
1769-L24ER-QB1BAllen-Bradley, 1769-L24ER-QB1B, CompactLogix 5370 L2 Controller, 2 EtherNet/IP ports, 750KB Memory, 16 DC Inputs, 16 DC Outputs, Up To 4 1769 I/O Expansion Modules, 8 EtherNet/IP and 120 TCP Connections, 24V DC

Features

    Specification

    Height
    4.65 in
    Isolation
    30V (continuous), Basic Insulation Type, USB to system, Ethernet to system and Ethernet to Ethernet. Type tested at 500V AC for 60 s
    Local Programming Port
    USB/Ethernet
    Memory
    0.5MB
    Number of Channels
    32
    Operating Temperature
    0...60 °C (32...140 °F)
    Minimum Order Qty
    1
    Order Interval
    1
    Catalog ID
    A-B1769L24ERQB1B
    Communication
    Ethernet , USB
    Depth
    105mm, 4.13"
    Display
    Status LEDs
    Embedded Network Port
    2 Ethernet
    Enclosure
    None (open-style)
    PowerSupply
    24V DC input, Isolated,Class 2/SELV
    Type
    Standard Controller
    Width
    4.53 in
    Mounting
    DIN Rail / Panel Mount
    Output Signal
    24 VDC
    Input Signal
    10-30VDC
