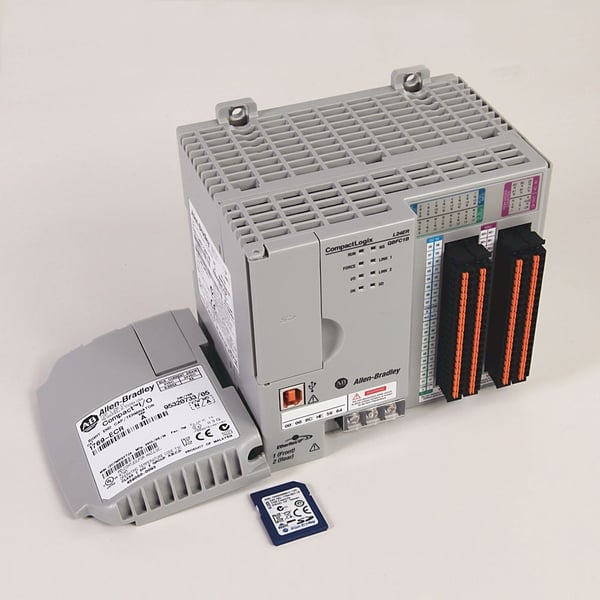

Allen-Bradley, 1769-L24ER-QBFC1B, CompactLogix 5370 L2 Controller, 2 EtherNet/IP Ports, 750KB Memory, 16 DC Inputs, 16 DC Outputs, 4 Universal Analog Inputs, 2 Analog Outputs, 4 High Speed Counters, 8 EtherNet/IP And 120 TCP Connections, 24V
Allen-Bradley, 1769-L24ER-QBFC1B, CompactLogix 5370 L2 Controller, 2 EtherNet/IP Ports, 750KB Memory, 16 DC Inputs, 16 DC Outputs, 4 Universal Analog Inputs, 2 Analog Outputs, 4 High Speed Counters, 8 EtherNet/IP And 120 TCP Connections, 24V
SKU: A-B1769L24ERQBFC1B
Manufacturer Part Number: 1769-L24ER-QBFC1B
UPC: 885630101255
Documents
Specification
| Height | 4.65 in |
|---|---|
| Communication | Ethernet , USB |
| Depth | 105mm, 4.13" |
| Embedded Network Port | 2 Ethernet |
| Output Signal | 24VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA |
| Operating Temperature | 0...60 °C (32...140 °F) |
| Number of Channels | 42 |
| Memory | 0.5MB |
| Local Programming Port | USB/Ethernet |
| Isolation | 30V (continuous), Basic Insulation Type, USB to system, Ethernet to system and Ethernet to Ethernet. Type tested at 500V AC for 60 s |
| Input Signal | 10-30VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA, Thermocouple: J, K, T, E, R, S, B, N and C, RTD: Platinum 385, Platinum 3916, Copper 426, Nickel 672, Nickel 618, Nickel-Iron 518, Resistance |
| Mounting | DIN Rail / Panel Mount |
| Enclosure | None (open-style) |
| Display | Status LEDs |
| Width | 5.51 in |
| Type | Standard Controller |
| PowerSupply | 24V DC input, Isolated,Class 2/SELV |
