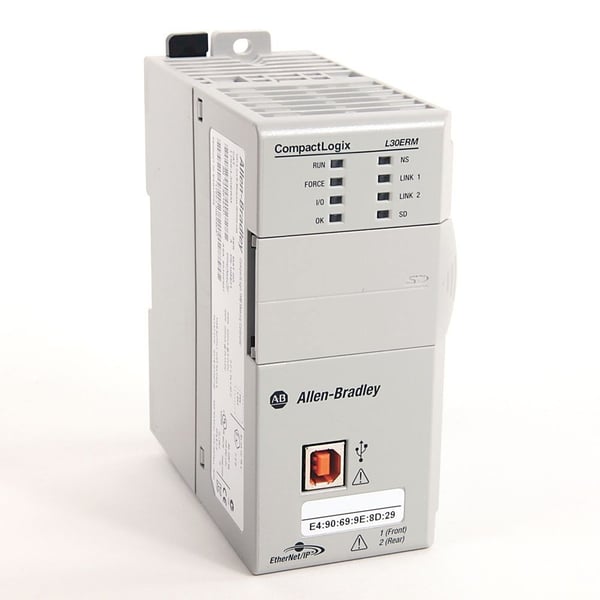

Allen-Bradley, 1769-L30ERM, CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 1MB Memory, 8 I/O Expansion, 16 Ethernet IP Nodes, 4 Axis CIP motion with Kinematics function

Selected 1769-L30ERMAllen-Bradley, 1769-L30ERM, CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 1MB Memory, 8 I/O Expansion, 16 Ethernet IP Nodes, 4 Axis CIP motion with Kinematics function
1769-L30ERMAllen-Bradley, 1769-L30ERM, CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 1MB Memory, 8 I/O Expansion, 16 Ethernet IP Nodes, 4 Axis CIP motion with Kinematics function

Specification

Operating Temperature
0...60 °C (32...140 °F)
Minimum Order Qty
1
Order Interval
1
Display
Status LEDs
Enclosure
None (open-style)
Mounting
DIN Rail / Panel Mount
Motion Axis Supported
4
Memory
1MB
Local Programming Port
USB/Ethernet
Isolation
30V (continuous), Basic Insulation Type, USB to system, Ethernet to system and Ethernet to Ethernet. Type tested at 500V AC for 60 s
Height
4.65 in
Width
2.17 in
Type
Standard Controller
Embedded Network Port
2 Ethernet
Depth
105mm, 4.13"
Communication
Ethernet , USB
Catalog ID
A-B1769L30ERM
