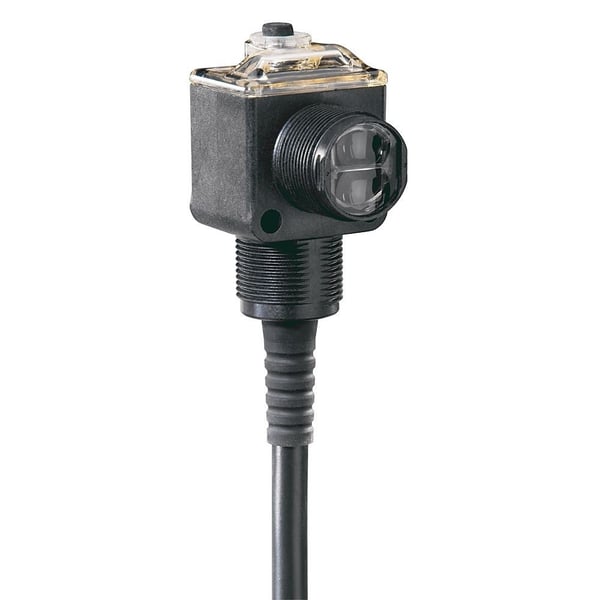

Allen-Bradley 42EF-P2JBB-F4 RightSight Photosensor, 18 mm Cylindrical, Front Through Hole, Polarized Retroreflective, Visible Red, 3, 000 mm, Not Adjustable Sensitivity, NPN & PNP W/ SCP, DC Light Operate, 4 Pin Micro QD on Pigtail
Allen-Bradley 42EF-P2JBB-F4 RightSight Photosensor, 18 mm Cylindrical, Front Through Hole, Polarized Retroreflective, Visible Red, 3, 000 mm, Not Adjustable Sensitivity, NPN & PNP W/ SCP, DC Light Operate, 4 Pin Micro QD on Pigtail
SKU: A-B42EFP2JBBF4
Manufacturer Part Number: 42EF-P2JBB-F4
UPC: 611320589665
Documents
Specification
| IO-Link Enabled | Yes |
|---|---|
| Model Selection Information | Selection for RightSight Standard |
| Operating Voltage/Mode | DC - Light Operate |
| Output Type | Both Sink (NPN) and Source (PNP) |
| Response Time | 1 ms |
| Sensing Mode | Polarized Retroreflective |
| Sensitivity Adjustment | No Adjustment |
| Type | RightSight Pol. Retro |
| Voltage Rating | 10.8...30V DC |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Connection Type | 4-pin DC Micro QD on 152mm (6in) pigtail |
| Sensing Range | 3m (9.8ft) |
| Sensing Beam | Visible Red LED |
