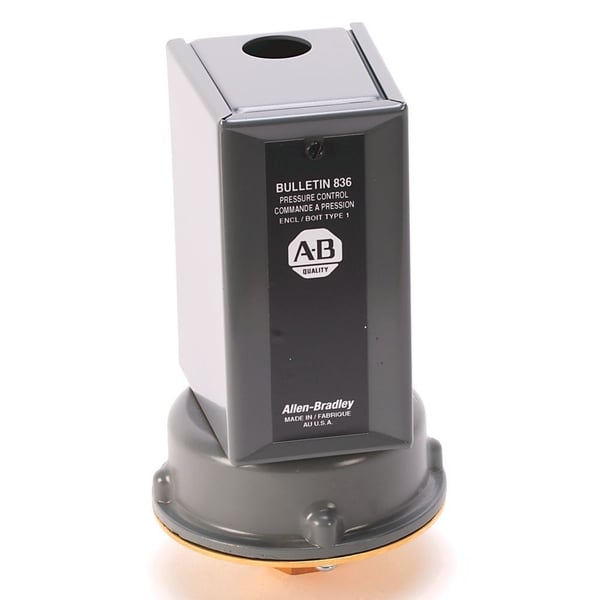

Allen-Bradley 836-C65A Electro-Mech Pres Cntrl Sw, Style C Product, 35 PSI - 375 PSI, NEMA Type 1, No Connector, Standard Contact Block - SPST, No Pilot Light, Standard Trip/Reset Setting
Allen-Bradley 836-C65A Electro-Mech Pres Cntrl Sw, Style C Product, 35 PSI - 375 PSI, NEMA Type 1, No Connector, Standard Contact Block - SPST, No Pilot Light, Standard Trip/Reset Setting
SKU: A-B836C65A
Manufacturer Part Number: 836-C65A
UPC: 662073199762
Documents
Specification
| Note: | Standard contact block - Single-pole, double-throw, snap action. Non-inductive ratings, 5 A, 240V. 3 A, 600V. Control circuit ratings AC - 125 VA, 24...600V. DC - 57.5 VA, 115...230V. |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Custom Trip or Reset Setting | Default Factory Setting |
| Enclosure Type | Type 1 Enclosure |
| Pressure Specifications | 375 psi. |
| Device Style | Device Style C, Stainless Steel External Bellows |
| Catalog ID | A-B836C65A |
| Adjustable Differential psi (Approximate Mid-Range Values) | 8 |
| Maximum Line Pressure | 650 |
