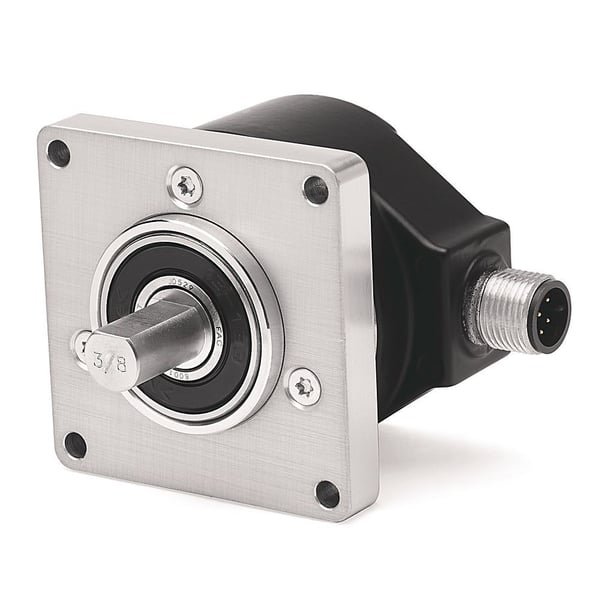

Allen-Bradley, 847T-DN2A-RG03000, Incremental Encoder, Standard Square Flange, 3/8 in Diameter Shaft with Flat, 4.5-5.5 Volt Line Driver,TTL (B-Leads-A, CW, Z gated with BN), MS Connector, 10-Pin with mating connector, 3000 Pulses per Revolution
Allen-Bradley, 847T-DN2A-RG03000, Incremental Encoder, Standard Square Flange, 3/8 in Diameter Shaft with Flat, 4.5-5.5 Volt Line Driver,TTL (B-Leads-A, CW, Z gated with BN), MS Connector, 10-Pin with mating connector, 3000 Pulses per Revolution
SKU: A-B847TDN2ARG03000
Manufacturer Part Number: 847T-DN2A-RG03000
UPC: 887172805066
Documents
Specification
| Minimum Order Qty | 1 |
|---|---|
| Order Interval | 1 |
| Output Configuration | 4.5-5.5 Volt Line Driver,TTL (B-Leads-A, CW, Z gated with BN) |
| Mounting Configuration | Standard Square Flange |
| Shaft Size | 3/8 inch Diameter Shaft with Flat |
| PowerSupply | 8-30 Volt DC |
| Exit Type | Radial Exit |
| Encoder Diameter/Type | 2 inch Diameter, Solid Shaft |
| Connector Cable Type | MS Connector, 10-Pin with mating connector |
| Catalog ID | A-B847TDN2ARG03000 |
