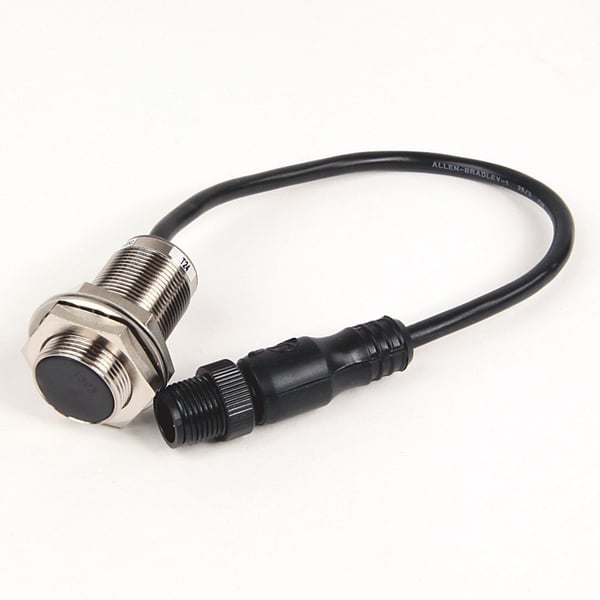

Allen-Bradley 872C-MH8NP18-FD02 Proximity Sensor, 3-Wire DC, Extended Range Short Barrel, 18mm Diameter, Tubular:Nickel Plated Brass, Short, 8mm Sensing Distance, Shielded, N.O., Source (PNP) Output, Pigtail (short cable with connector)
Allen-Bradley 872C-MH8NP18-FD02 Proximity Sensor, 3-Wire DC, Extended Range Short Barrel, 18mm Diameter, Tubular:Nickel Plated Brass, Short, 8mm Sensing Distance, Shielded, N.O., Source (PNP) Output, Pigtail (short cable with connector)
SKU: A-B872CMH8NP18FD02
Manufacturer Part Number: 872C-MH8NP18-FD02
UPC: 884951749214
Specification
| Output | N.O., Source (PNP) |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Barrel Diameter | 18mm |
| Sensing Distance | 8mm |
| Shielding | Shielded |
| Special Features | Short |
| Voltage Rating | 10 - 30V DC |
| Application | 3-Wire DC Extended Range Short Barrel |
| Connection | Pigtail (short cable with connector) |
| Catalog ID | A-B872CMH8NP18FD02 |
| Cable Length | 0.2 Meter PVC Cable with DC 4 Pin Micro QD |
