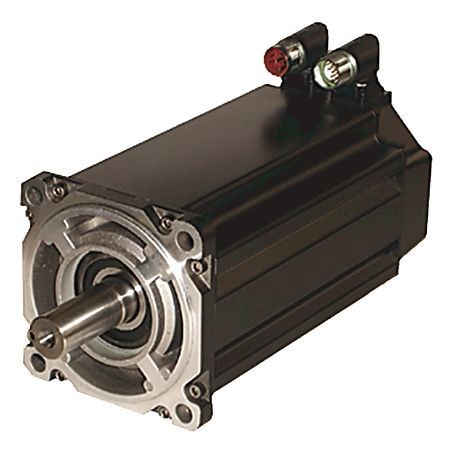

Allen-Bradley MPL-B4530K-SJ72AA Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 30 = 76.2 mm (3.0in.), 4000 RPM, Single-turn High-resolution Encoder. Keyed Shaft Extension

Selected Allen-Bradley MPL-B4530K-SJ72AA Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 30 = 76.2 mm (3.0in.), 4000 RPM, Single-turn High-resolution Encoder. Keyed Shaft Extension
Allen-Bradley MPL-B4530K-SJ72AA Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 30 = 76.2 mm (3.0in.), 4000 RPM, Single-turn High-resolution Encoder. Keyed Shaft Extension

Documents

Specification

Magnet Stack Length
30 = 76.2 mm (3.0 in.)
Speed Rating
4000 RPM
AD Product Type
Bulletin MPL - Low-Inertia Brushless Servo Motors Product
Armature Voltage
460 V
Brake Option
No Brake
Connectors
SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)
Enclosure
Keyed Shaft Extension
Feedback
Single-turn High-resolution Encoder
Frame
45 = 130 mm (5.12 in.)
