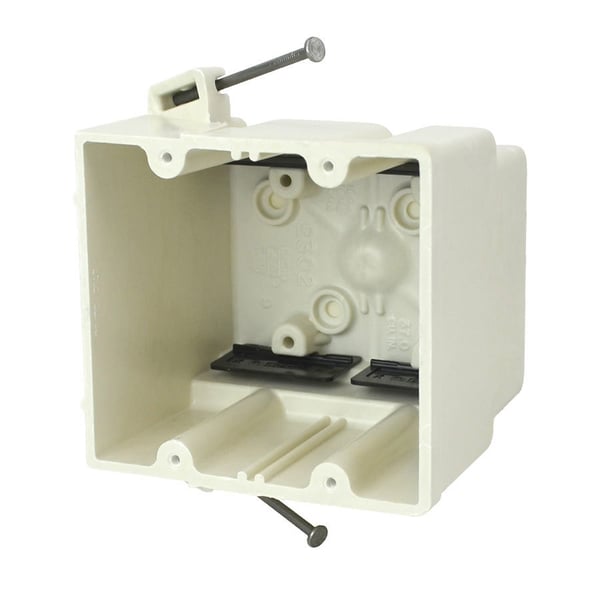

Allied Moulded FiberglassBOX™ 2302-N Non-Conductive Non-Metallic Switch/Receptacle Box With Knockouts, Fiberglass Reinforced Polyester, 37 cu-in Capacity, 2 Gangs, 4 Outlets, 8 Knockouts, 4 in W x 3-7/16 in D x 3-3/4 in H

Selected IDW IMAGE cec63956f60f87d90ffddbc236814074c3380fcbab9f2311bfb0c8867f07b4e4
IDW IMAGE cec63956f60f87d90ffddbc236814074c3380fcbab9f2311bfb0c8867f07b4e4

Documents

Short Description

The FiberglassBOX™ switch and outlet boxes are molded of impact-resistant, high strength fiberglass reinforced thermoset polyester material. The FiberglassBOX™ Premier Series line of products was created for the electrical contractor looking for non-metallic outlet boxes with hard box characteristics. Allied Moulded FiberglassBOX™ line offers many different unique features.

Features

  • Machine tapped device holes
  • Rigid hard box construction
  • Leveling ribs
  • No distortion with high temperatures
  • Shatter-resistant with low temperatures
  • Slot provision for low voltage divider
  • Offset gauge marks

Specification

Mounting Type
Angled Mid Nail
Number of Gangs
2
Mounting Orientation
Horizontal
Number of Outlets
4
Material
Fiberglass Reinforced Polyester
Number of Knockouts
8
Shape
Rectangle
Type
Non-Conductive Non-Metallic
Capacity
37 cu-in
Dimensions
4 in W x 3-7/16 in D x 3-3/4 in H
Color
Beige/Tan
